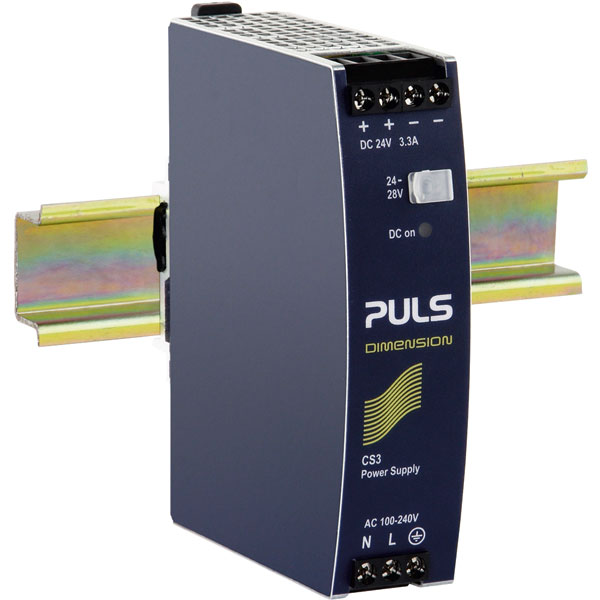

PULS CS3.241 Dimension DIN Rail Power Supply 24V DC 3.3A 80W 1-Phase

This DIN rail power supply from PULS is a cost-efficient device with no compromises in quality, reliability, size, and power reserves.
Features include: single-phase, 20% power reserve (power boost), adjustable output voltage, active power current limiting, full power from -25 to +60°C and large screw terminals.

• Input voltage range: 88-264V AC, 90-375V DC
• 1 phase
• Output: 24V DC 3.3A 80W
• Termination type: Screw terminal
• Dimensions 32 x 124 x 102mm
• Manufacturer's part CS3.241

For more information on this PULS power supply, please see its datasheet.
DIN rail power supply

Type	Rail mounted PSU (DIN)
Number of Outputs	2
Power Rating	80W
1st secondary output voltage	-264V
2nd secondary output voltage	-264V
3rd secondary output voltage	-264V
Input Voltage	88 - 264 CA
Max. output current 1	3.3A
Max. output current 2	3.3A
Max. output current 3	3.3A
Maximum Temperature	+70°C
Nominal value output voltage 1	24V
Output	24V DC 3.3A 80W
Output Current	3.3
Output voltage stabilized	-264V
Rated supply voltage AC 50 Hz	-264V
Rated supply voltage AC 60 Hz	-264V
Rated supply voltage DC	-264V
Secondary voltage adjustable	-264V
Voltage type (supply voltage)	-264V
