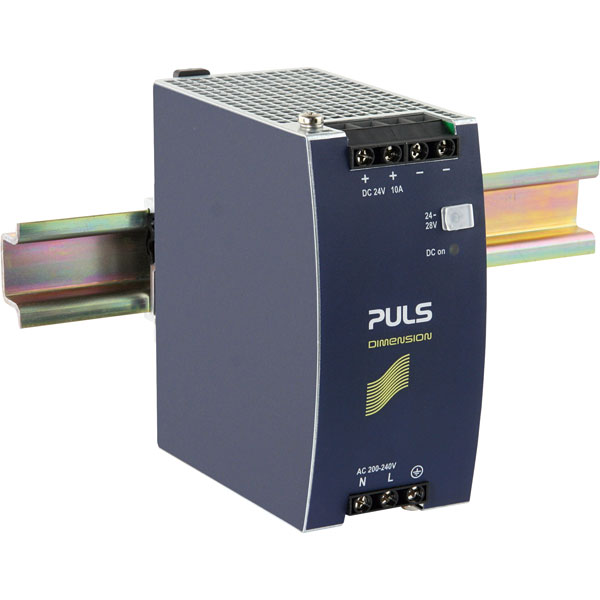

PULS CS10.244 Dimension DIN Rail Power Supply 230V AC 24V DC 10A 240W

This DIN rail power supply from PULS is a cost-efficient device with no compromises in quality, reliability, size, and power reserves.
Features include: single-phase, 20% power reserve (power boost), adjustable output voltage, active power current limiting, full power from -25 to +60°C and large screw terminals.

• Input voltage range: 230V AC
• 1 phase
• Output: 24V DC 10A 240W
• Termination type: Screw terminal
• Dimensions 60 x 124 x 117mm
• Manufacturer's part CS10.244

For more information on this PULS power supply, please see its datasheet.
DIN rail power supply

Type	Rail mounted PSU (DIN)
Number of Outputs	2
Power Rating	240W
1st secondary output voltage	230V
2nd secondary output voltage	230V
3rd secondary output voltage	230V
Input Voltage	230 ACV
Max. output current 1	10A
Max. output current 2	10A
Max. output current 3	10A
Maximum Temperature	+70°C
Nominal value output voltage 1	24V
Output Current	10
Output voltage stabilized	230V
Rated supply voltage AC 60 Hz	230V
Rated supply voltage DC	230V
Secondary voltage adjustable	230V
Voltage type (supply voltage)	230V
