PTR Hartmann 54551070401E AK(Z)4551 Socket Housing 7 Pins 3.50mm Push-In Spring

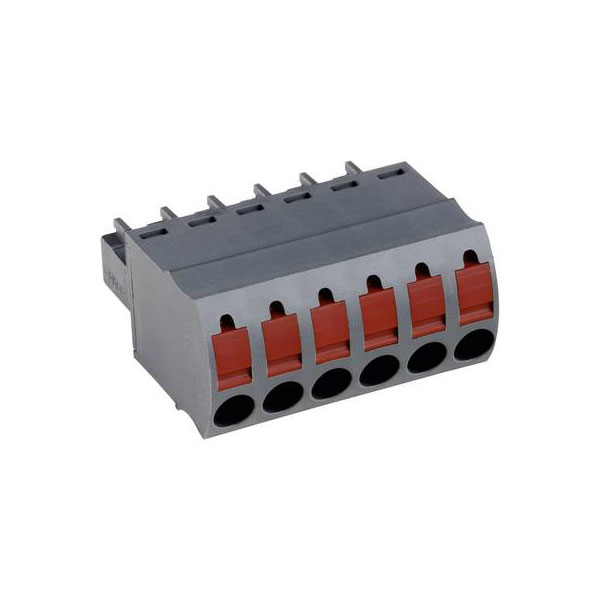

Image Representative of Range

PTR Hartmann 54551070401E AK(Z)4551 Socket Housing 7 Pins 3.50mm Push-In Spring

PTR
Order Code:

06-2905

Brand: PTR MPN: 54551070401E EAN-13: 2050001583178
Qty Unit Price (Ex VAT)
3+ £1.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
19 in stock, despatched in 4 working days

The PTR Hartmann socket housing cable AK(Z)4551 has a total of 7 pins with a contact spacing of 3.50 mm. It is suitable for applications requiring reliable electrical connections in compact spaces. This component is often used in telecommunications and industrial equipment.
Type Socket housing cable
Number of Positions 7
Number of Rows 7
Contact Plating Tin plated
AWG (min.) 26
AWG max. 16
Colour Basalt grey
Connector cross section Up to 1.5mm²
Cross Section 2.50mm²
Dimensions (L x W x H) 11.30 x 24.50 x 21.10 mm
Height 21.10mm
Industrial packaging No
Length 11.30mm
Material (details) PA, UL94V-0
Max. temperature +105°C
Min. cross section 0.14mm²
Min. temperature -30°C
Nominal Current 10A
Nominal Voltage 160V
Series AK(Z)4551
Stripping length (max.) 11.00mm
Width 24.50mm
