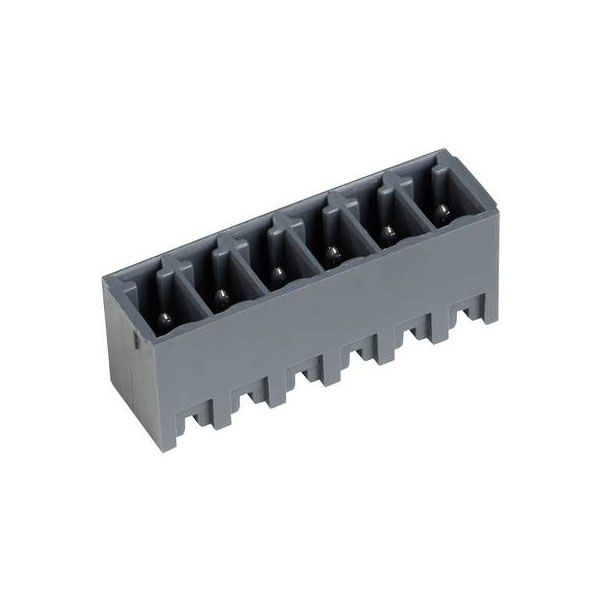

PTR Hartmann 51550125355D PCB Pin Housing 12 Pins 3.50mm Plug Direction Above

Image Representative of Range

PTR Hartmann 51550125355D PCB Pin Housing 12 Pins 3.50mm Plug Direction Above

PTR
Order Code:

06-2887

Brand: PTR MPN: 51550125355D EAN-13: 2050001583291
Qty Unit Price (Ex VAT)
5+ £1.18
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
29 in stock, despatched in 4 working days

PTR Hartmann manufactures the pin housing PCB STL1550/12G-3.5-V with 12 pins and a contact spacing of 3.50 mm. The product is suitable for electronic circuit board applications requiring precise pin alignment. Its reliable construction ensures efficient electrical connections in various electronic devices.
Type Pin housing PCB
Number of Positions 12
Number of Rows 12
Orientation Perpendicular (to the PCB)
Contact Plating Tin plated
Board contact surface Tin plated
Colour Basalt grey
Connection Print
Cross Section 3.50mm
Dimensions (L x W x H) 7.00 x 43.40 x 12.60 mm
Height 12.60mm
Industrial packaging No
Length 7.00mm
Material (details) PA, UL94V-0
Max. temperature +105°C
Min. temperature -30°C
Nominal Current 10A
Nominal Voltage 160V
Series STL(Z)1550
Width 43.40mm
