PTR Hartmann 51550065355E PCB STL Pin Housing 6 Pins 3.50mm Clear Plugging Face

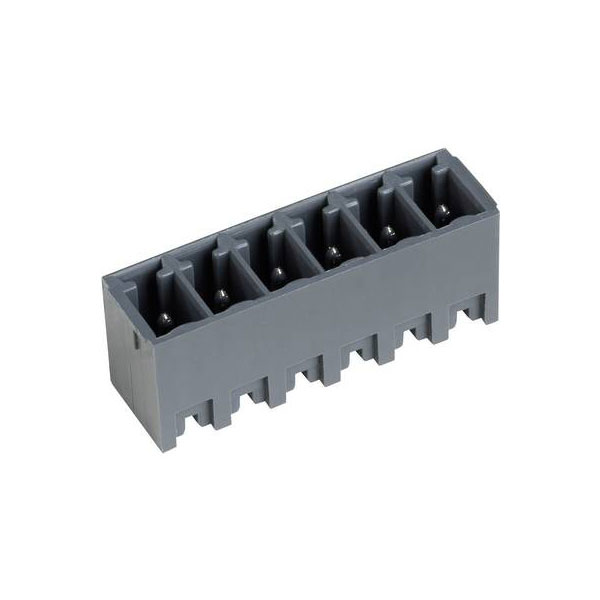

Image Representative of Range

PTR Hartmann 51550065355E PCB STL Pin Housing 6 Pins 3.50mm Clear Plugging Face

PTR
Standard range
Order Code:

06-2880

Brand: PTR MPN: 51550065355E
Qty Unit Price (Ex VAT)
1+ £0.517
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
300 in stock, despatched in 4 working days

PTR Hartmann produces the STL1550/6G-3.5-V pin housing PCB, featuring six pins with a contact spacing of 3.50 mm. It is designed for securely connecting electronic components on printed circuit boards. The pin housing is commonly used in industrial and consumer electronics applications.
Type Pin housing PCB
Board contact surface Tin plated
Connection Print
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Plug, vertical mount
Contact material Copper alloy
CS 3.50mm
Dim (L x W x H) 7.00 x 22.40 x 12.60 mm
Factory colour Basalt grey
Height 12.60mm
Industrial packaging No
Length 7.00mm
Manufacturer part # 51550065355E
Material (details) PA, UL94V-0
Max. temperature +105°C
Min. temperature -30°C
Misc Attribute 1 Pin header, vertical
Misc Attribute 2 STL1550/6G-3.5-V
No. of rows 1
Nominal current 10A
Nominal current - rounded value 10A
Nominal current (details) 10A
Nominal voltage 300V
Nominal voltage (details) 160V
Pins per row 6
RoHS-compliant Yes
Series STL(Z)1550
Total number of pins 6
Width 22.40mm
