PTR Hartmann 51550055255F STL(Z)1550 Pin Housing PCB 5 Pins 3.50mm Spacing

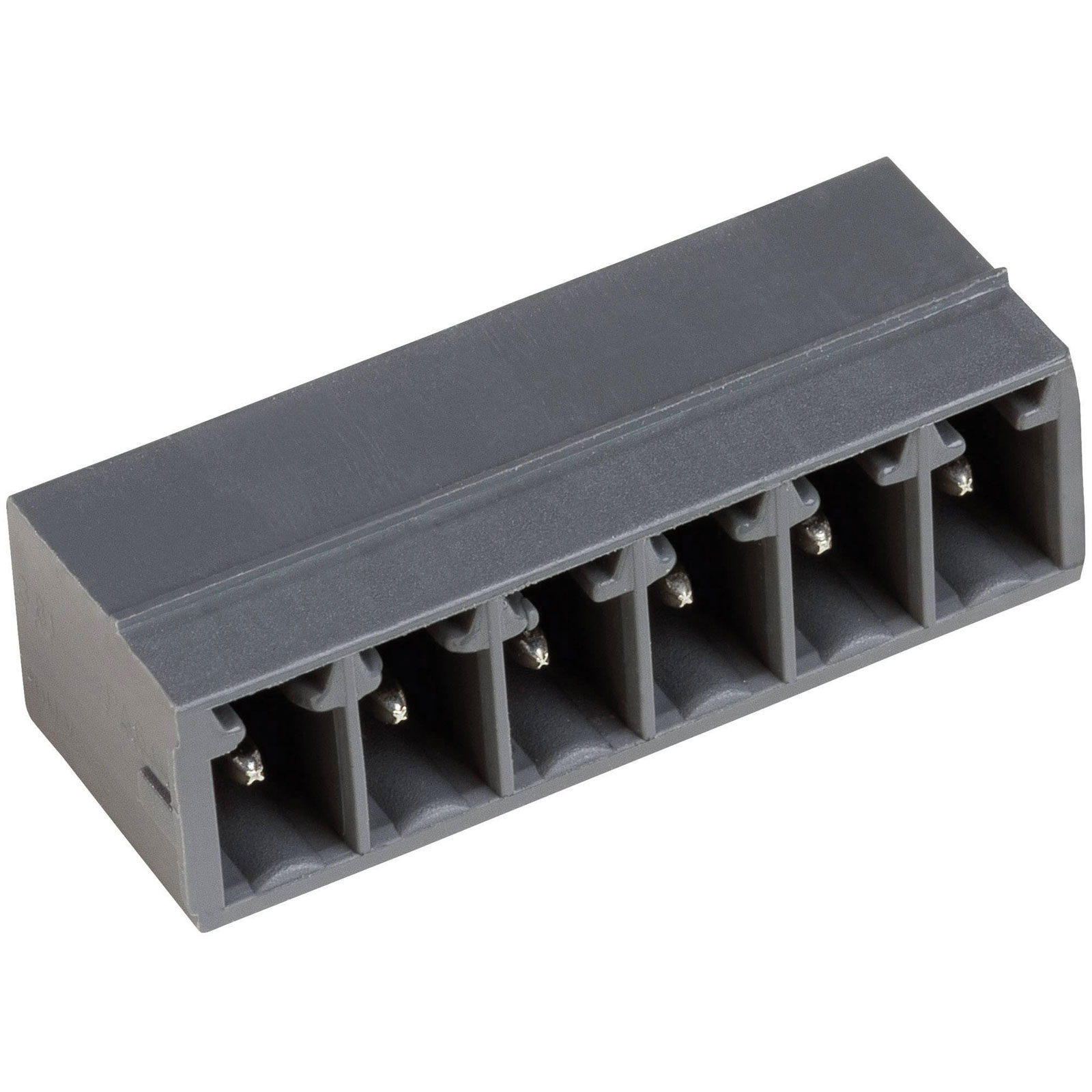

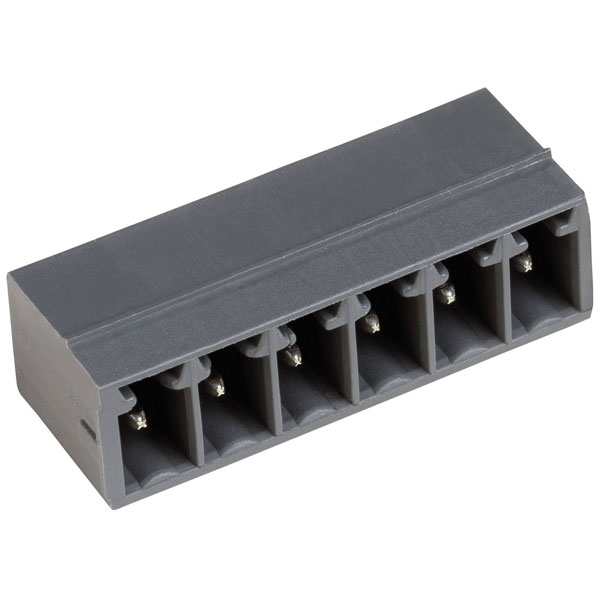

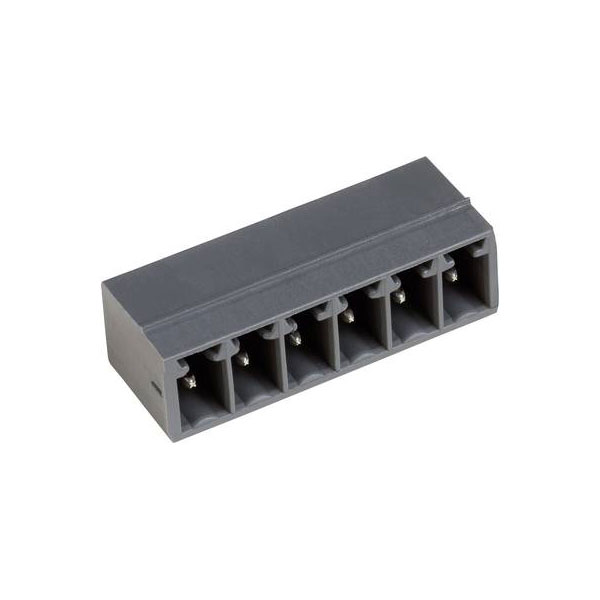

Image Representative of Range

PTR Hartmann 51550055255F STL(Z)1550 Pin Housing PCB 5 Pins 3.50mm Spacing

PTR
Standard range
Order Code:

06-2879

Brand: PTR MPN: 51550055255F
Qty Unit Price (Ex VAT)
1+ £0.487
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
205 in stock, despatched in 4 working days

The PTR Hartmann pin housing PCB STL1550 is a component featuring a total of five pins with a contact spacing of 3.50 mm. It is designed for secure electrical connections in printed circuit boards. Typical applications include electronic devices where compact and reliable connections are required.
Type Pin housing PCB
Board contact surface Tin plated
Connection Print
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Plug, horizontal mount
Contact material Copper alloy
CS 3.50mm
Dim (L x W x H) 9.20 x 18.90 x 10.50 mm
Factory colour Basalt grey
Height 10.50mm
Industrial packaging No
Length 9.20mm
Manufacturer part # 51550055255F
Material (details) PA, UL94V-0
Max. temperature +105°C
Min. temperature -30°C
Misc Attribute 1 Pin header, vertical
Misc Attribute 2 STL1550/5G-3.5-H
No. of rows 1
Nominal current 10A
Nominal current - rounded value 10A
Nominal current (details) 10A
Nominal voltage 300V
Nominal voltage (details) 160V
Pins per row 5
RoHS-compliant Yes
Series STL(Z)1550
Total number of pins 5
Width 18.90mm
