PTR Hartmann 51550025355F STL Pin Housing 2 Pins 3.50mm Misconnection Protection

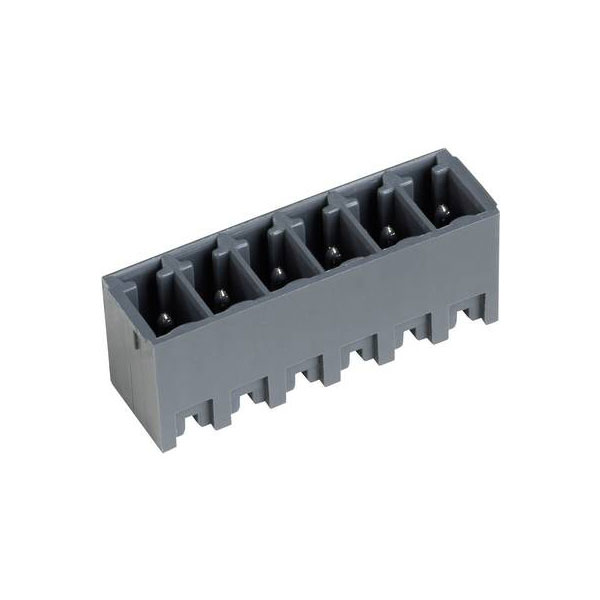

Image Representative of Range

PTR Hartmann 51550025355F STL Pin Housing 2 Pins 3.50mm Misconnection Protection

PTR
Order Code:

06-2876

Brand: PTR MPN: 51550025355F EAN-13: 2050001583215
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
91 in stock, despatched in 4 working days

PTR Hartmann manufactures the Pin housing PCB STL(Z)1550, featuring two pins with a contact spacing of 3.50 mm. Model number 51550025355F is a compact housing ideally suited for printed circuit board applications requiring secure electrical connections. Its precise design ensures reliable performance in high-density electronic assemblies.
Type Pin housing PCB
Number of Positions 2
Number of Rows 2
Orientation Perpendicular (to the PCB)
Contact Plating Tin plated
Board contact surface Tin plated
Colour Basalt grey
Connection Print
Cross Section 3.50mm
Dimensions (L x W x H) 7.00 x 12.60 x 8.40 mm
Height 8.40mm
Industrial packaging No
Length 7.00mm
Material (details) PA, UL94V-0
Max. temperature +105°C
Min. temperature -30°C
Nominal Current 10A
Nominal Voltage 160V
Series STL(Z)1550
Width 12.60mm
