PTR Hartmann 51350125001E Hartmann Pin Strip 1 Row 12 Pins Precision 1pc

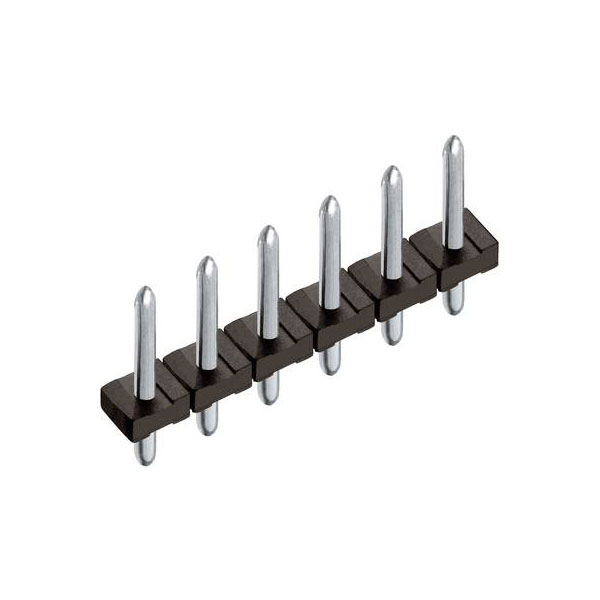

Image Representative of Range

PTR Hartmann 51350125001E Hartmann Pin Strip 1 Row 12 Pins Precision 1pc

PTR
Order Code:

06-2874

Brand: PTR MPN: 51350125001E EAN-13: 2050000684265
Qty Unit Price (Ex VAT)
10+ £0.477
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
19 in stock, despatched in 4 working days

PTR Hartmann manufactures the pin strip (precision) with one row and twelve pins, identified by part number 51350125001E. This black, vertical multi-pin connector, STL1350/12-3.5-V, is used in various electronic components, connectors, and clamps. It is suitable for precision applications requiring reliable multi-pin connectivity.
Type Pin strip (precision)
Number of Positions 12
Pitch 3.5 mm
Case Material PA 6.6
Colour Black
Connection Print
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Contact surface Tin plated
Cross-section range 3.50mm
Height 12.00mm
Industrial packaging No
Length 2.70mm
Material (details) PA, UL94 V-0
Max. temperature +105°C
Min. temperature -30°C
Nominal Current 8A
Nominal Voltage 125V
Number of Rows 1
Pin Length 8.50mm
Pin Ø 2.70mm
Pin shape Circular
Pins per row 12
Width 42.00mm
