PTR Hartmann 50960125021D STLZ960 Pin Housing 12 Pins 7.62mm Spacing

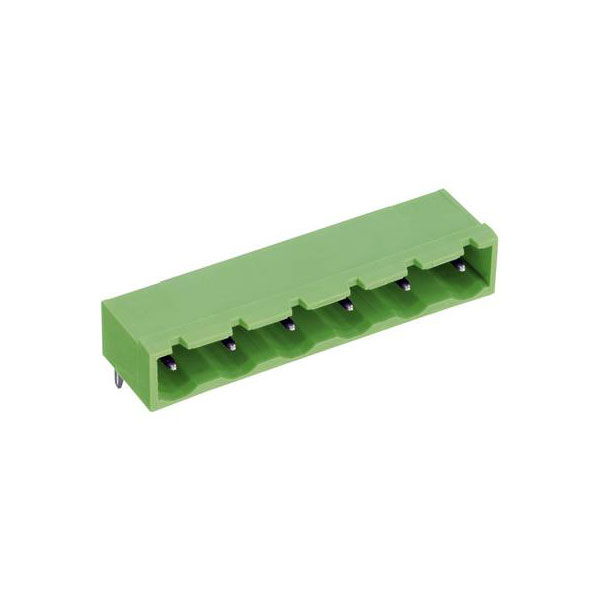

Image Representative of Range

PTR Hartmann 50960125021D STLZ960 Pin Housing 12 Pins 7.62mm Spacing

PTR
Order Code:

06-2854

Brand: PTR MPN: 50960125021D EAN-13: 2050000684159
Qty Unit Price (Ex VAT)
5+ £0.954
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
14 in stock, despatched in 4 working days

PTR Hartmann manufactures the STLZ960/12G-7.62-H, a horizontal multi-pin connector featuring a 12-pin housing with a contact spacing of 7.62 mm. Made from PA material with a UL94 V-0 rating for safety, it is ideal for securing connections in electronic components. This connector is commonly used in applications requiring reliable electrical connections on printed circuit boards.
Type Pin housing PCB
Number of Positions 12
Number of Rows 12
Orientation Parallel (to the PCB)
Contact Plating Tin plated
Board contact surface Tin plated
Case Material PA 6.6
Colour Green
Connection Print
Cross Section 7.62mm
Dimensions (L x W x H) 11.40 x 91.44 x 12.00 mm
Height 12.00mm
Industrial packaging No
Length 11.40mm
Material (details) PA, UL94 V-0
Max. temperature +105°C
Min. temperature -30°C
Nominal Current 12A
Nominal Voltage 400V
Series STLZ960
Width 91.44mm
