PTR Hartmann 50960105021D STLZ960 Pin Housing 10 Pins 7.62mm Anti-incorrect Plug

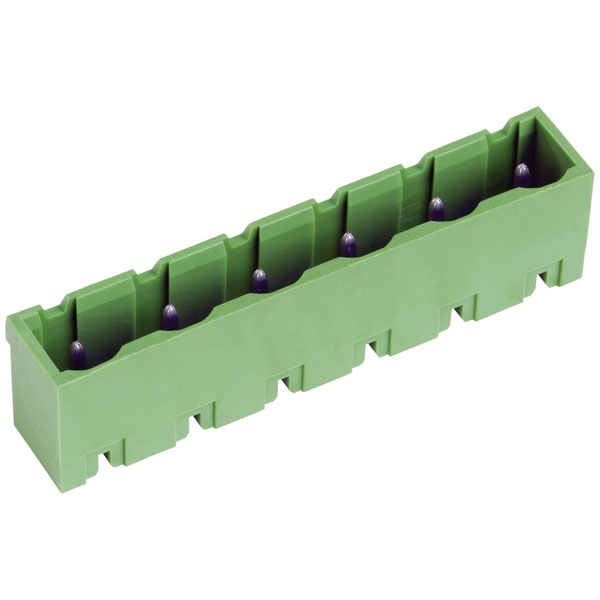

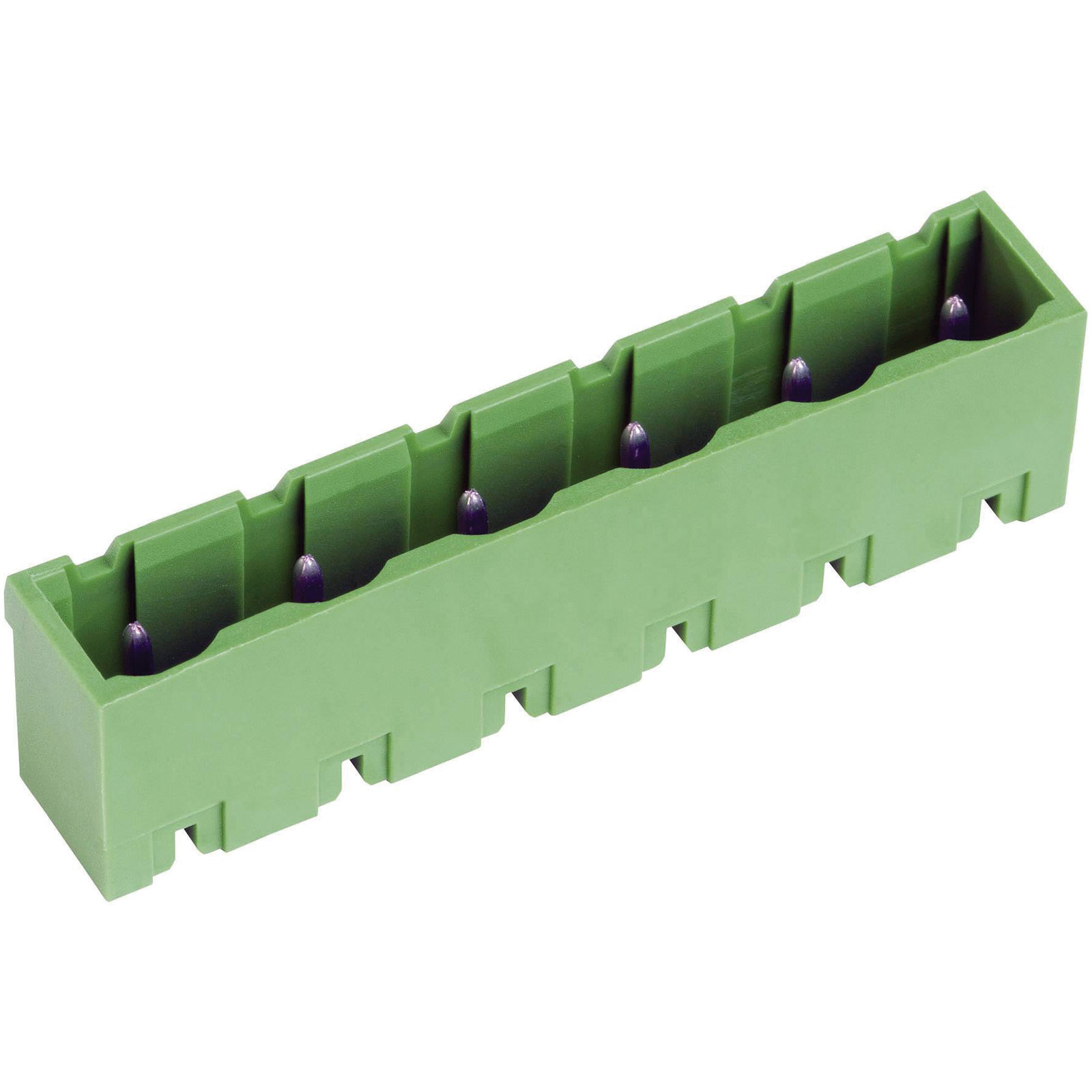

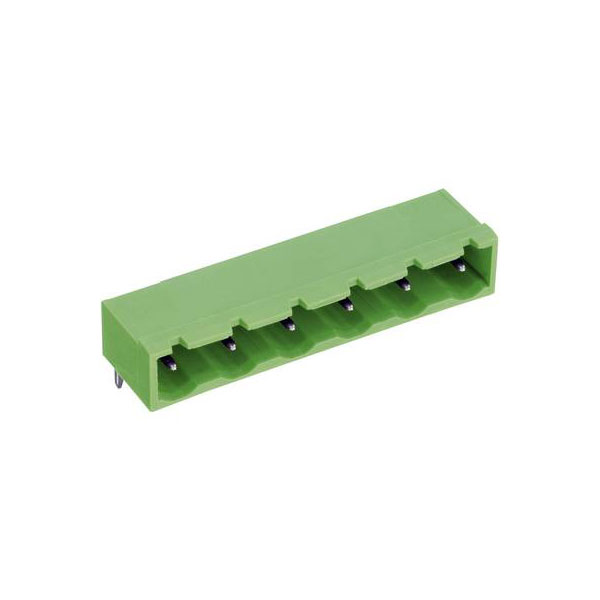

Image Representative of Range

PTR Hartmann 50960105021D STLZ960 Pin Housing 10 Pins 7.62mm Anti-incorrect Plug

PTR
Standard range
Order Code:

06-2852

Brand: PTR MPN: 50960105021D
Qty Unit Price (Ex VAT)
1+ £0.756
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
29 in stock, despatched in 4 working days

PTR Hartmann manufactures the multi-pin connector STLZ960, featuring 10 pins with a contact spacing of 7.62 mm. This component, made from UL94 V-0 rated PA material, is designed for housing on PCBs where robust and secure connections are needed. Common applications include use in various electronic assemblies, particularly in components, connectors, and clamps.
Type Pin housing PCB
Board contact surface Tin plated
Case material PA 6.6
Connection Print
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Plug, horizontal mount
Contact material Copper alloy
CS 7.62mm
Dim (L x W x H) 11.40 x 76.20 x 12.00 mm
Factory colour Green
Height 12.00mm
Industrial packaging No
Length 11.40mm
Manufacturer part # 50960105021D
Material (details) PA, UL94 V-0
Max. temperature +105°C
Min. temperature -30°C
Misc Attribute 1 Multi-pin connector, vertical
Misc Attribute 2 STLZ960/10G-7.62-H
No. of rows 1
Nominal current 15A
Nominal current - rounded value 15A
Nominal current (details) 12A
Nominal voltage 300V
Nominal voltage (details) 400V
Pins per row 10
RoHS-compliant Yes
Series STLZ960
Total number of pins 10
Width 76.20mm
