PTR Hartmann 50960085121D STLZ960 Pin Housing 8 Pins 7.62mm Closed Design

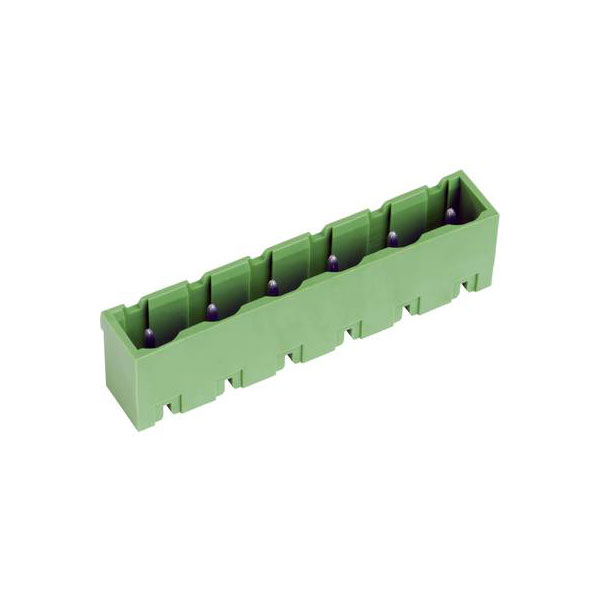

Image Representative of Range

PTR Hartmann 50960085121D STLZ960 Pin Housing 8 Pins 7.62mm Closed Design

PTR
Order Code:

06-2851

Brand: PTR MPN: 50960085121D EAN-13: 2050000679193
Qty Unit Price (Ex VAT)
10+ £0.656
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
22 in stock, despatched in 4 working days

The PTR Hartmann STLZ960/8G-7.62-V is a green multi-pin connector with eight pins and a contact spacing of 7.62 mm. It is typically used for connecting printed circuit boards in electronic applications. This vertical pin housing is suitable for use in various components, connectors, and clamps.
Type Pin housing PCB
Number of Positions 8
Number of Rows 8
Orientation Perpendicular (to the PCB)
Contact Plating Tin plated
Board contact surface Tin plated
Case Material PA 6.6
Colour Green
Connection Print
Cross Section 7.62mm
Dimensions (L x W x H) 8.40 x 60.96 x 15.90 mm
Height 15.90mm
Industrial packaging No
Length 8.40mm
Material (details) PA, UL94 V-0
Max. temperature +105°C
Min. temperature -30°C
Nominal Current 12A
Nominal Voltage 400V
Series STLZ960
Width 60.96mm
