PTR Hartmann 50960065121D Hartmann PCB Pin Housing 6 Pins 7.62mm Top Plug-in

PTR
Order Code:

06-2850

Brand: PTR MPN: 50960065121D EAN-13: 2050000679179
Qty Unit Price (Ex VAT)
10+ £0.568
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
380 in stock, despatched in 4 working days

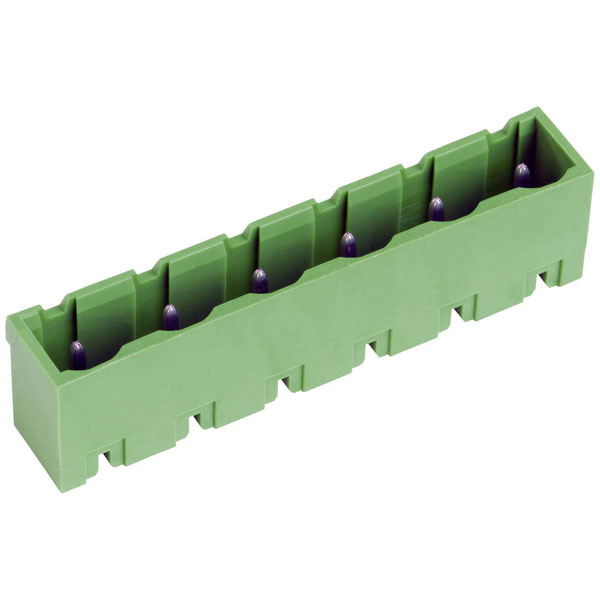

The PTR Hartmann pin housing PCB is a six-pin, vertical multi-pin connector with a contact spacing of 7.62 mm. It is green and identified by the manufacturer's part number 50960065121D. This component is typically used in electronic circuitry for connecting PCBs in industrial and consumer electronics applications.
Type Pin housing PCB
Number of Positions 6
Number of Rows 6
Orientation Perpendicular (to the PCB)
Contact Plating Tin plated
Board contact surface Tin plated
Case Material PA 6.6
Colour Green
Connection Print
Cross Section 7.62mm
Dimensions (L x W x H) 8.40 x 45.72 x 15.90 mm
Height 15.90mm
Industrial packaging No
Length 8.40mm
Material (details) PA, UL94 V-0
Max. temperature +105°C
Min. temperature -30°C
Nominal Current 12A
Nominal Voltage 400V
Series STLZ960
Width 45.72mm
