PTR Hartmann 50960035121E STLZ960 Pin Housing 3 Pin 7.62mm PCB Top Plug-in

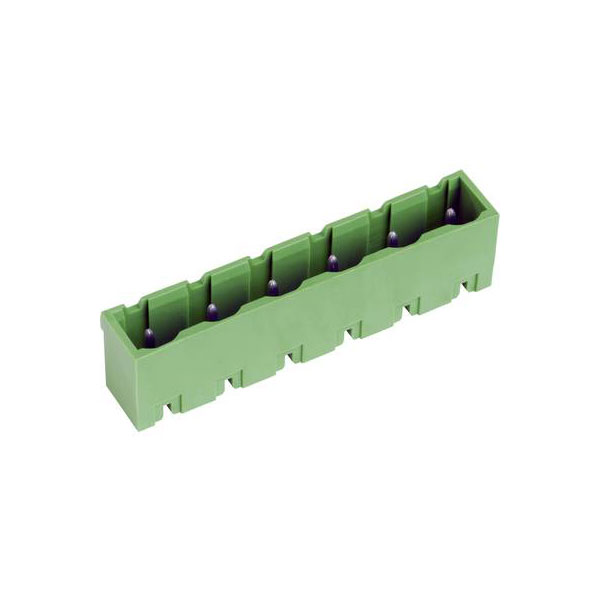

Image Representative of Range

PTR Hartmann 50960035121E STLZ960 Pin Housing 3 Pin 7.62mm PCB Top Plug-in

PTR
Order Code:

06-2848

Brand: PTR MPN: 50960035121E EAN-13: 2050000679148
Qty Unit Price (Ex VAT)
20+ £0.279
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
600 in stock, despatched in 4 working days

PTR Hartmann's STLZ960 pin housing PCB is a green, vertical connector with three pins and a contact spacing of 7.62 mm. It is commonly used in electronic assembly applications where durable and reliable pin connections are required. This component is suitable for various connectors and clamps in basic electronic units.
Type Pin housing PCB
Number of Positions 3
Number of Rows 3
Orientation Perpendicular (to the PCB)
Contact Plating Tin plated
Board contact surface Tin plated
Case Material PA 6.6
Colour Green
Connection Print
Cross Section 7.62mm
Dimensions (L x W x H) 8.40 x 22.86 x 15.90 mm
Height 15.90mm
Industrial packaging No
Length 8.40mm
Material (details) PA, UL94 V-0
Max. temperature +105°C
Min. temperature -30°C
Nominal Current 12A
Nominal Voltage 400V
Series STLZ960
Width 22.86mm
