PTR Hartmann 50950109121D STLZ950 Pin Housing PCB 10 Pins 5.08mm Contact

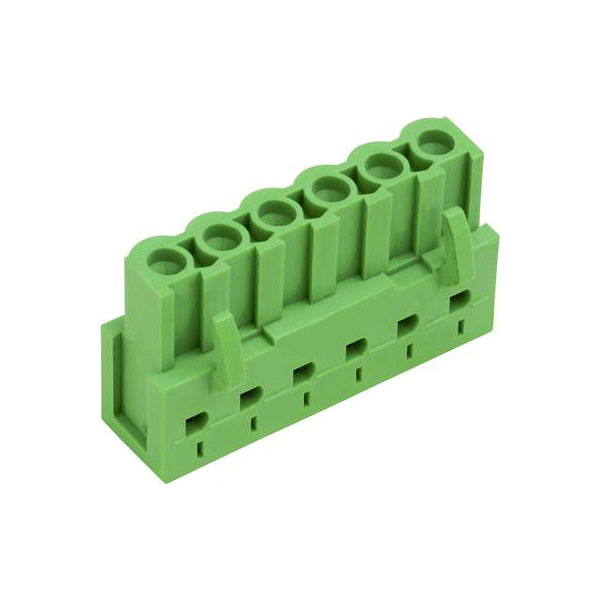

Image Representative of Range

PTR Hartmann 50950109121D STLZ950 Pin Housing PCB 10 Pins 5.08mm Contact

PTR
Order Code:

06-2845

Brand: PTR MPN: 50950109121D EAN-13: 2050001583802
Qty Unit Price (Ex VAT)
3+ £1.65
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
58 available to back orderBack-order availability date - 11/01/2026

The PTR Hartmann pin housing PCB model STLZ950/10-5.08-V has a total of 10 pins with a contact spacing of 5.08 mm. This component is often used in electronic applications requiring reliable electrical connections on printed circuit boards. It is suitable for various industrial and consumer electronics assemblies.
Type Pin housing PCB
Number of Positions 10
Number of Rows 10
Orientation Perpendicular (to the PCB)
Contact Plating Tin plated
Board contact surface Tin plated
Case Material PA 6.6
Colour Green
Connection Print
Cross Section 5.08mm
Dimensions (L x W x H) 8.50 x 52.80 x 22.50 mm
Height 22.50mm
Industrial packaging No
Length 8.50mm
Max. temperature +105°C
Min. temperature -30°C
Nominal Current 10A
Nominal Voltage 300V
Series STLZ950
Width 52.80mm
