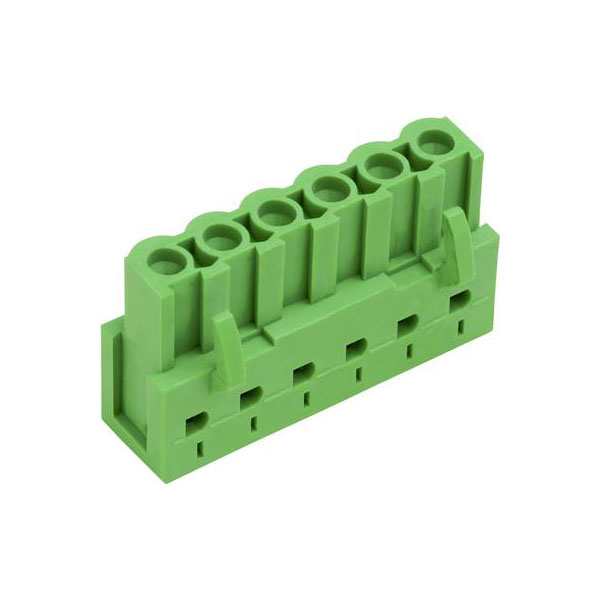

PTR Hartmann 50950069121E STLZ950 Pin Housing PCB 6 Pins 5.08mm Spacing

Image Representative of Range

PTR Hartmann 50950069121E STLZ950 Pin Housing PCB 6 Pins 5.08mm Spacing

PTR
Standard range
Order Code:

06-2841

Brand: PTR MPN: 50950069121E
Qty Unit Price (Ex VAT)
1+ £1.08
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
67 in stock, despatched in 4 working days

The PTR Hartmann pin housing PCB STLZ950 features six pins with a contact spacing of 5.08 mm. Manufactured by PTR Hartmann, this component is ideal for connecting printed circuit boards in electronic applications. It is commonly used in industrial and consumer electronics where reliable pin connections are required.
Type Pin housing PCB
Board contact surface Tin plated
Case material PA 6.6
Connection Print
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Plug, vertical mount
Contact material Copper alloy
CS 5.08mm
Dim (L x W x H) 8.50 x 32.48 x 22.50 mm
Factory colour Green
Height 22.50mm
Industrial packaging No
Length 8.50mm
Manufacturer part # 50950069121E
Max. temperature +105°C
Min. temperature -30°C
Misc Attribute STLZ950/6-5.08-V
No. of rows 1
Nominal current 10A
Nominal current - rounded value 10A
Nominal voltage 300V
Pins per row 6
RoHS-compliant Yes
Series STLZ950
Total number of pins 6
Width 32.48mm
