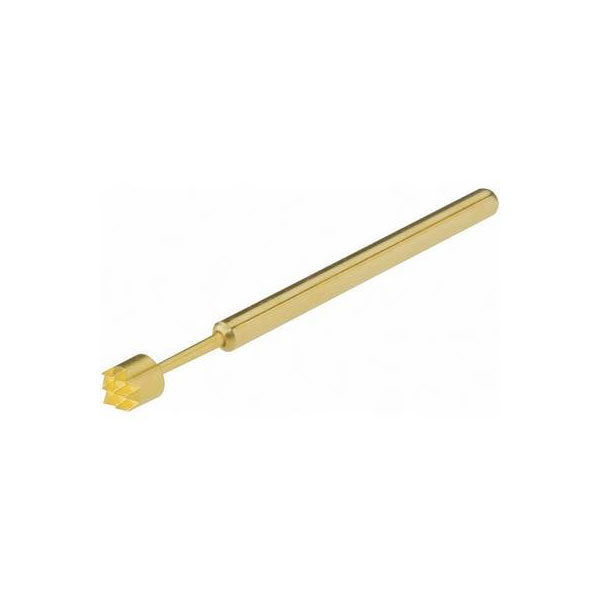

PTR 1010-A-0.8NE-AU-1.5 Precision Test Tip for PCB and Assembly Testing

PTR Hartmann manufactures the 1010-A-0.8NE-AU-1.5 precision test tip, characterised by its reliable spring-loaded design. This product is a specialised test pin, often used in precision testing applications within electronic components and connectors. Its high-quality construction ensures accurate and consistent performance in demanding test environments.

Nominal Current	2A
Type	Precision test tip
CS	1.91mm
Misc Attribute 2	A
Pin Length	17mm
Pin Ø	1mm
Pitch of spring	3mm
Refining	Gold
Resistance	≤20mΩ
Spring force	0.8N
