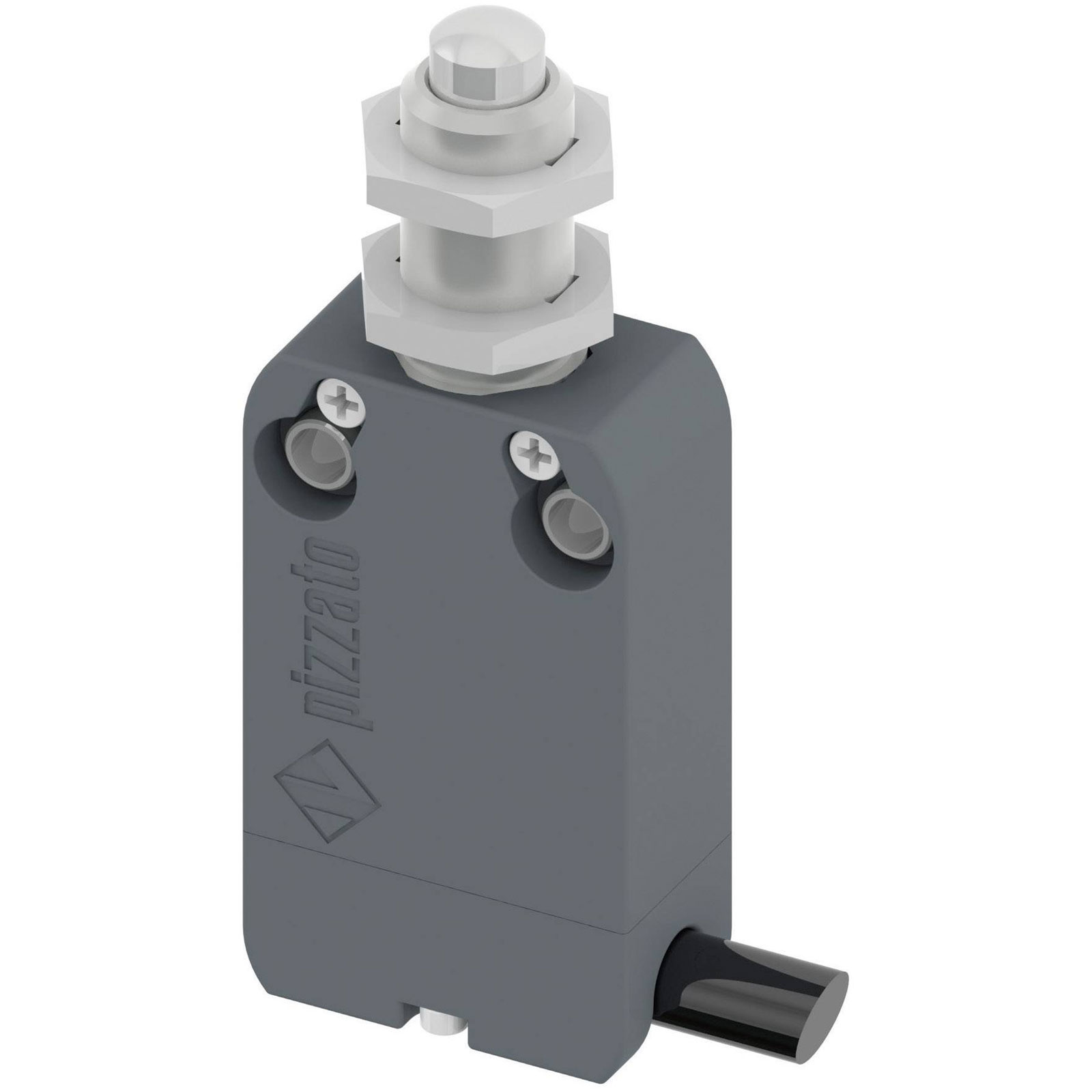

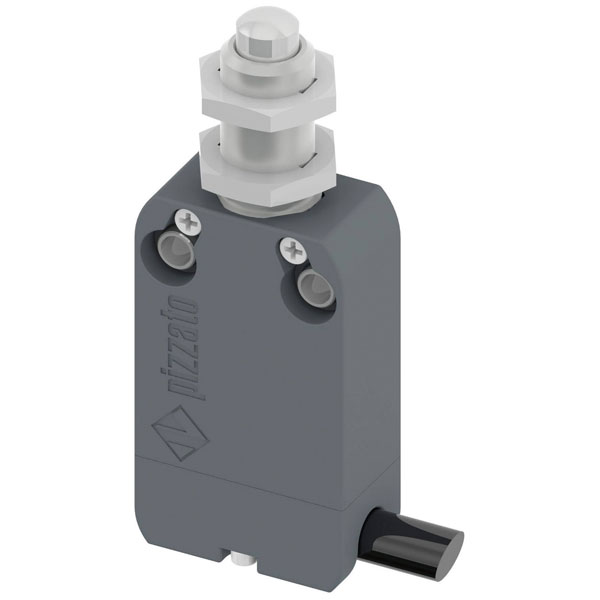

Pizzato Elettrica manufactures the NF B110EB-DN2 limit switch, which is designed for up to 250 V AC and 4 A with momentary operation. This switch features a tappet mechanism and an IP67 rating, making it highly resistant to dust and water. It is typically used in industrial applications to monitor or control the position of a mechanical component.
Type |
Limit switch |
Actuating force |
25N |
Cable length |
2.00m |
Connection |
Open end cable |
Contact material |
Ag |
Depth |
16mm |
Dim |
(W x H x D) 30 x 60 x 16 mm |
Functions |
momentary |
Height |
60mm |
IP rating |
IP67 |
Material |
Plastic |
Misc Attribute |
NF B110EB-DN2 |
Operation type |
Tappet |
RoHS-compliant |
Yes |
Switching current (max.) |
4A |
Switching voltage |
250V AC |
Width |
30mm |
