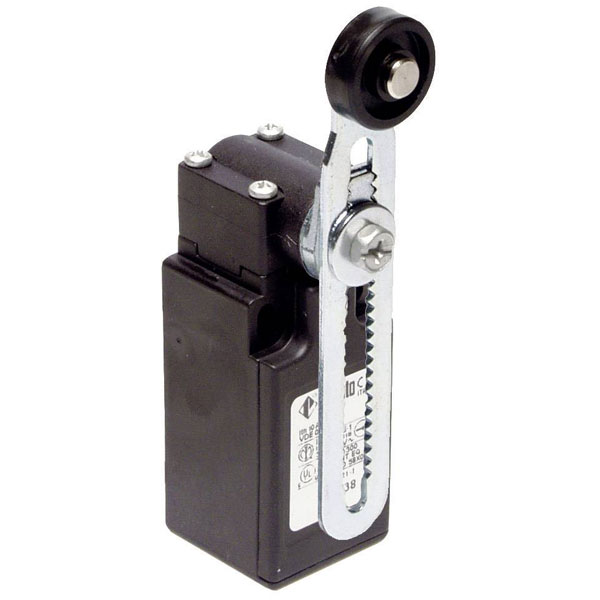

Pizzato Elettrica FR 556-M2 Limit Switch 250V 6A Pivot Lever IP67

Pizzato Elettrica
Standard range
Order Code:

12-7688

Brand: Pizzato Elettrica MPN: FR 556-M2 EAN-13: 8018851081798
Qty Unit Price (Ex VAT)
1+ £18.48
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
228 in stock, despatched in 4 working days

Pizzato Elettrica manufactures the FR 556-M2 limit switch, which operates at 250 V AC and 6 A. It features a pivot lever mechanism, is momentary, and has an IP67 rating for enhanced durability. This switch is commonly used in industrial applications for precise position detection and control.
Type Limit switch
Actuating force 0.25N
Casing Glass fibre reinforced polymer
Connection Screws
Contact material Ag
Depth 30.8mm
Dim (W x H x D) 30.8 x 104.5 x 30.8 mm
Durability 40 million cycles
Functions momentary
Height 104.5mm
IP rating IP67
Material Plastic
Misc Attribute FR 556-M2
Operation type Pivot lever
RoHS-compliant Yes
Switching Current 6A
Switching current (max.) 6A
Switching voltage 250V AC
Temperature range -25 - +80°C
Thread Size M20
Width 30.8mm
