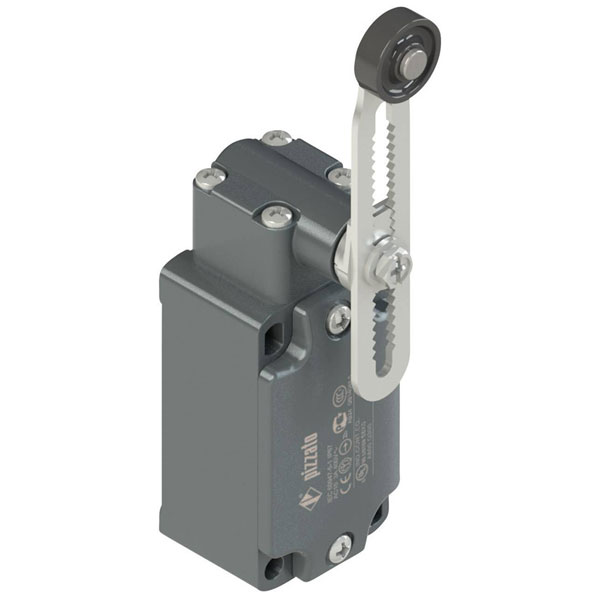

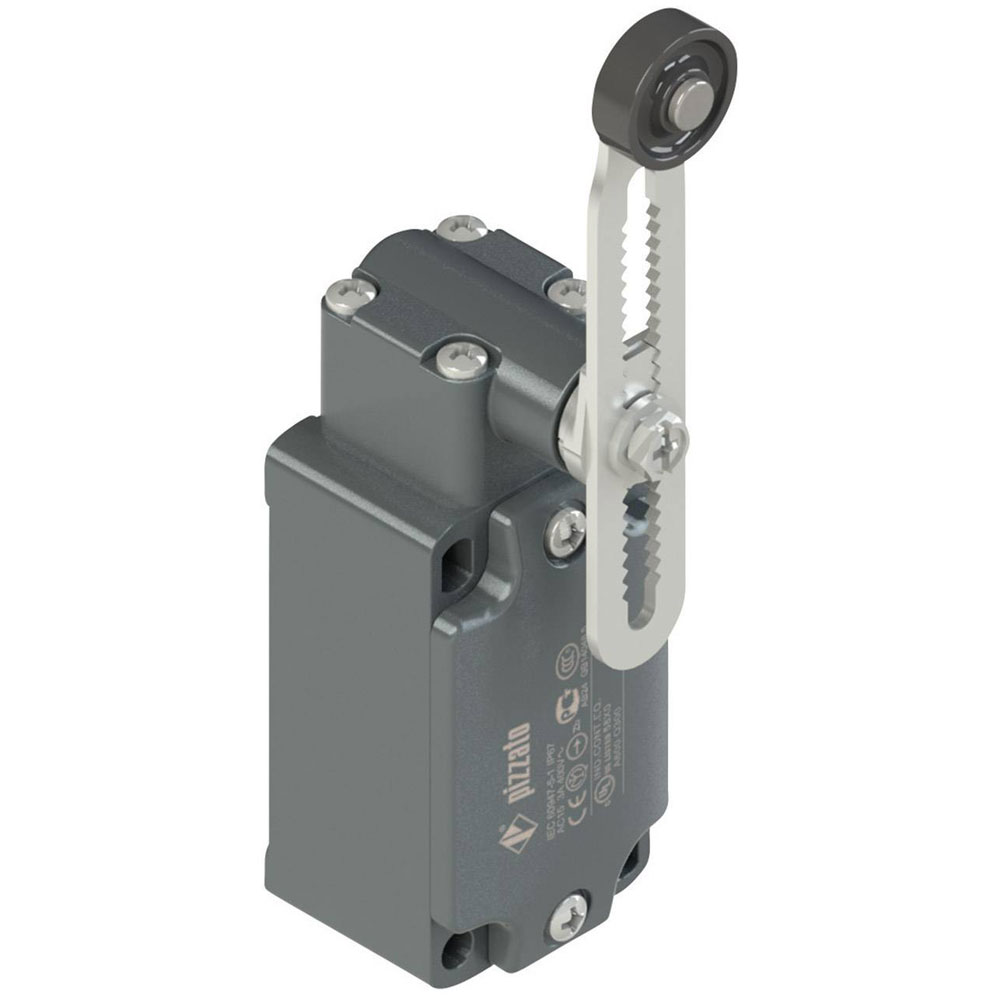

Pizzato Elettrica FD556-M2 Limit Switch 250V AC 6A Pivot Lever IP67

Pizzato Elettrica
Standard range
Order Code:

12-7680

Brand: Pizzato Elettrica MPN: FD 556-M2 EAN-13: 8018851081835
Qty Unit Price (Ex VAT)
1+ £27.35
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
46 in stock, despatched in 4 working days

The Pizzato Elettrica FD 556-M2 is a limit switch with a pivot lever and momentary action, rated at 250 V AC and 6 A. It features an IP67 protection rating, making it suitable for demanding environments. Typical applications include position detection in automation systems and machinery.
Type Limit switch
Actuating force 0.25N
Connection Screws
Contact material Ag
Depth 30mm
Dim (W x H x D) 40 x 122.5 x 30 mm
Durability 40 million cycles
Functions momentary
Height 122.5mm
IP rating IP67
Material Metal
Operation type Pivot lever
RoHS-compliant Yes
Switching current (max.) 6A
Switching voltage 250V AC
Thread Size M20
Width 40mm
