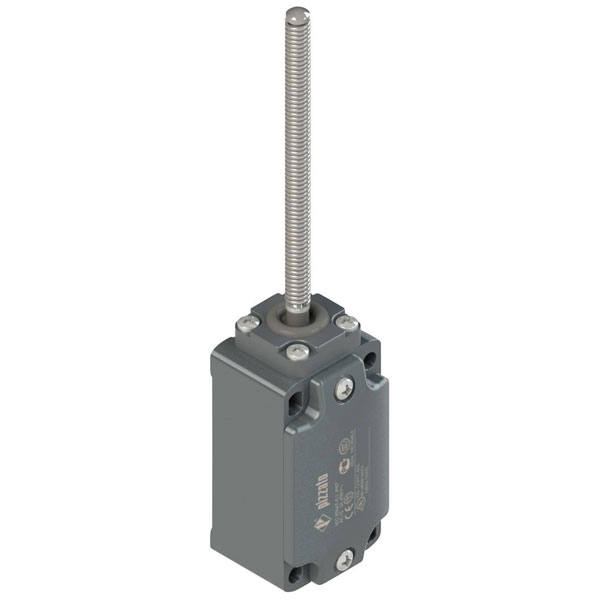

Pizzato Elettrica FD 525-M2 Limit Switch 250V 6A Rod IP67 1pc

The Pizzato Elettrica FD 525-M2 is a limit switch with a spring-loaded rod, designed for momentary operation at 250 V AC and 6 A. With an IP67 rating, it is suitable for harsh environments and provides reliable position switching. Commonly used in industrial machinery, it ensures precise control and safety in automation systems.

Type	Limit switch
Actuating Force	0.14N
Connection	Screws
Contact Material	Ag
Depth	30mm
Dim	(W x H x D) 40 x 189.5 x 30 mm
Durability	40 million cycles
Functions	momentary
Height	189.5mm
IP Rating	IP67
Material	Metal
Operation type	Spring-loaded rod
Switching current (max.)	6A
Switching Voltage	250V AC
Thread Size	M20
Width	40mm
