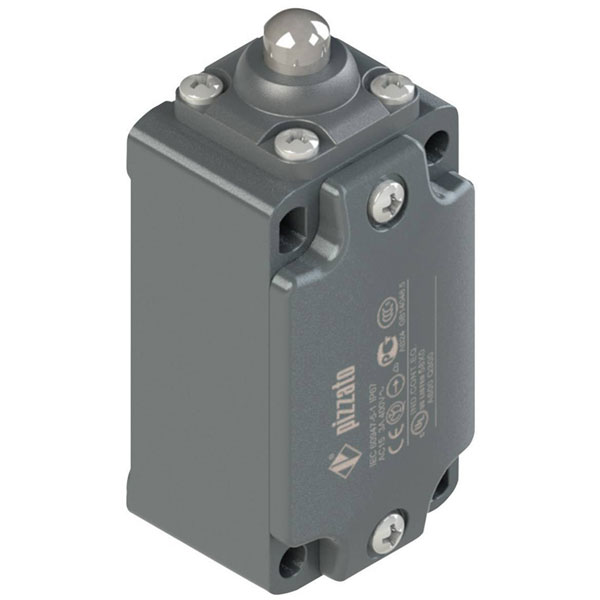

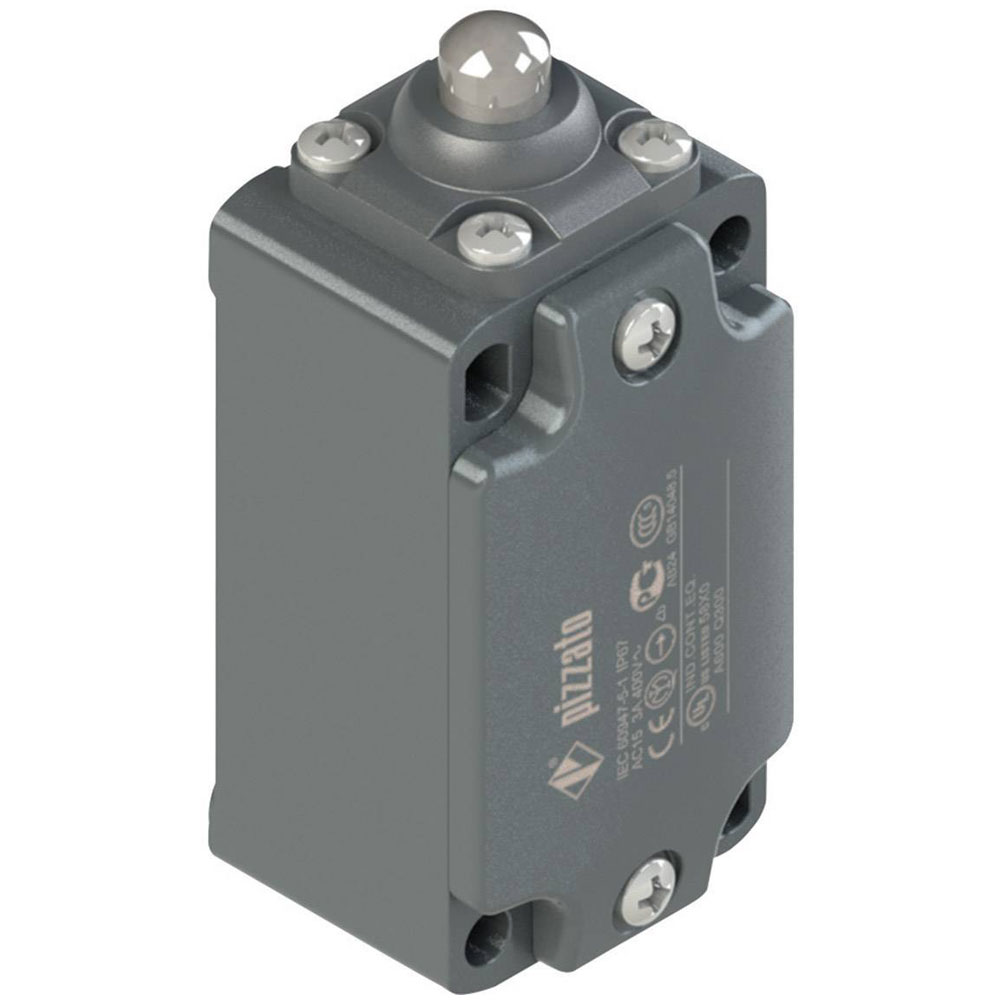

Pizzato Elettrica FD 501-M2 Limit Switch 250V AC 6A IP67 Tappet Momentary

Pizzato Elettrica
Standard range
Order Code:

12-7676

Brand: Pizzato Elettrica MPN: FD 501-M2 EAN-13: 8018851118692
Qty Unit Price (Ex VAT)
1+ £17.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

The Pizzato Elettrica FD 501-M2 is a limit switch designed for 250 V AC and 6 A operation, featuring a tappet momentary action. With an IP67 rating, it is suitable for robust environments, offering protection against dust and water ingress. Commonly used in machinery, it serves as a position switch or an emergency power off button to enhance safety and control.
Type Limit switch
Actuating force 25N
Connection Screws
Contact material Ag
Depth 30mm
Dim (W x H x D) 40 x 90.5 x 30 mm
Durability 40 million cycles
Functions momentary
Height 90.5mm
IP rating IP67
Material Metal
Misc Attribute FD 501-M2
Operation type Tappet
RoHS-compliant Yes
Switching current (max.) 6A
Switching voltage 250V AC
Thread Size M20
Width 40mm
