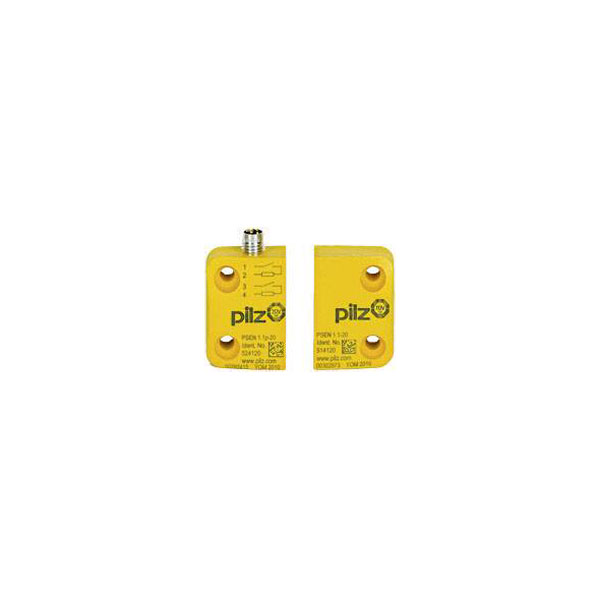

PILZ 504220 PSEN Magnetic safety switch 24V DC IP65/IP67 8mm 1 pc

PILZ 504220 is a magnetic safety switch designed for use in demanding industrial environments. This product, also known by the alternate description 2182979, operates at 24V DC and features an IP65/IP67 protection rating, making it well-suited for applications where exposure to dust and water is a consideration. With an activation distance of 8mm, the switch ensures reliable performance and safety in safety-critical systems, such as those found in manufacturing plants, machinery safety interlocks, and automation systems. The device's robust design and durable materials offer long-lasting operation, and it is ideal for integration into safety control systems that require non-contact actuation and high level safety assurance.

Type	Magnetic safety switch
Connection	M8 plug
Contact Configuration	2 makers
Content	1
Depth	13mm
Dimensions	(W x H x D) 26 x 36 x 13 mm
Height	36mm
IP Rating	IP65, IP67
Max. temperature	+55°C
Maximum Temperature	+55°C
Min. temperature	-10°C
Minimum Operating Temperature	-10°C
Nominal Voltage	24V
Weight	31g
Width	26mm
