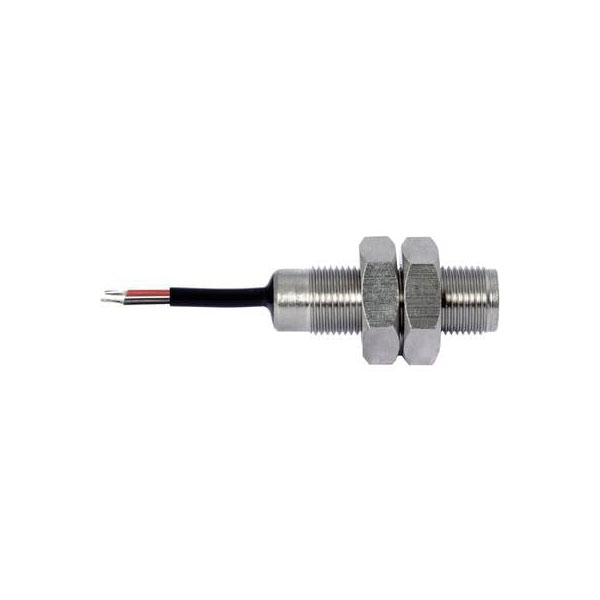

PIC MS-2212M-6/976 Reed Switch 350V DC/300V AC M12 Thread Metal Housing

PIC
Order Code:

12-7601

Brand: PIC MPN: MS-2212M-6/976 EAN-13: 2050001676689
Qty Unit Price (Ex VAT)
1+ £11.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
71 available to back orderBack-order availability date - 12/01/2026

Produced by PIC, the MS-2212M-6/976 is a reed switch that handles up to 350 V DC or 300 V AC with a current capacity of 0.7 A and a power rating of 70 VA or 50 W. This robust component is ideal for applications such as door contacts and security sensors. It offers reliable performance in both direct and alternating current systems.
Type Reed switch
Contact Material 1 maker
(Ø) 12mm
Cable Length 0.50m
Connection Open end cable
Dim (Ø x L) 12 mm x 38 mm
Enclosure material Brass
Length 38mm
Material properties nickel plated
Max. temperature +125°C
Min. temperature -25°C
Switching current (max.) 0.7A
Water activity 25 - 40
Water activity (max.) 40
Water activity (min.) 25
