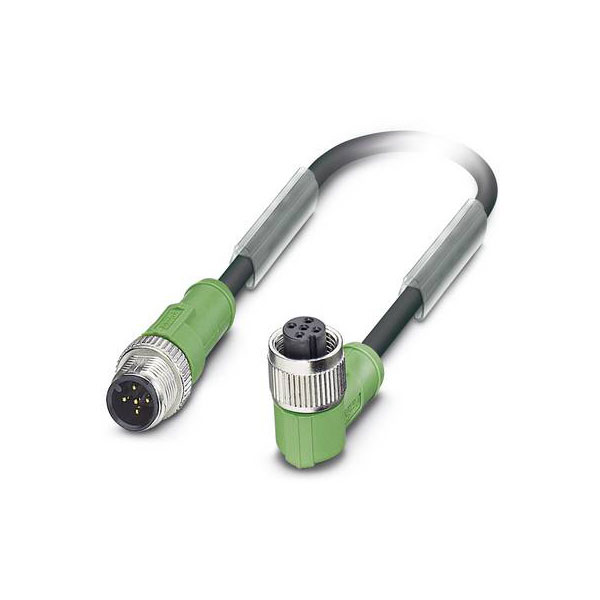

Phoenix Contact SAC-5P-M12MS/06-PUR/M12FR Sensor/Actuator Cable 0.6m

Phoenix Contact manufactures the SAC-5P-M12MS/0,6-PUR/M12FR 1681635 cable, featuring a durable 5-pin M12 connector with a PUR sheath. It is designed for reliable sensor and actuator connections in industrial applications. Its robust construction ensures optimal performance in challenging environments.

Connector 1	M12
Connector 2	M12
Colour	Black
Length	0.6m
Type	Sensor connector
Cable Length	0.6m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.27mm
Halogen free	true
Industrial packaging	Yes
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-5P-M12MS/0,6-PUR/M12FR
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Angled
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
