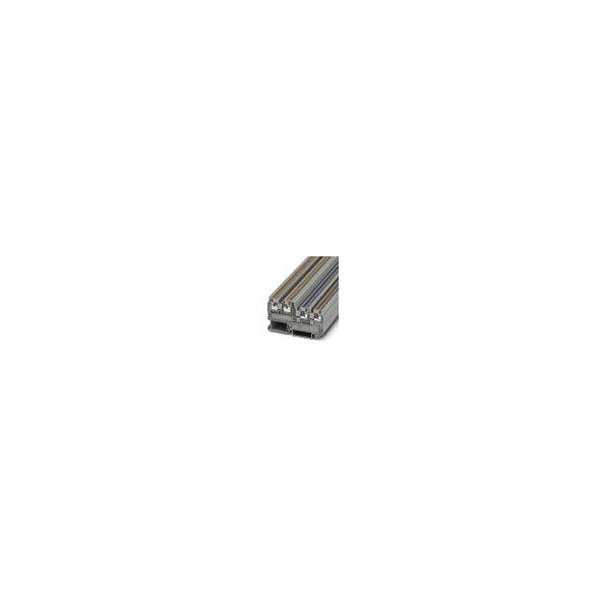

The Phoenix Contact 3244410 is a proximity switch/actuator terminal featuring a 3.5 mm push-lock spring terminal connection. It is supplied in grey and comes in packages of 50 pieces, suitable for sensor and switchboard terminal applications. This product ensures reliable continuity and is ideal for use in various automation and control systems.
| Type |
Proximity switch/actuator terminal |
| Pitch |
3.5mm |
| Termination |
Spring Clamp |
| Width |
3.5mm |
| Wire Gauge (mm²) |
1.5mm² |
| Clamp width |
3.5mm |
| Closing plate required |
N/A |
| Colour |
Grey |
| Colour light source |
N/A |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 1mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 1.5mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.14 - 1.5mm² |
| Connection |
Push-lock spring terminal |
| Cross connectable |
true |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
13.5A |
| Depth |
40mm |
| Disconnect function |
false |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
41.5mm |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
false |
| LED switching for |
N/A |
| Length |
74.4mm |
| Material insulation body |
Other |
| Misc Attribute |
PTIO 1,5/S/3 |
| Mounting method |
Other |
| Nominal Voltage |
250V |
| Number of clamp positions per level |
2 |
| Number of levels |
2 |
| Number of Rows |
2 |
| Operating Temperature |
- - -°C |
| Pins per row |
2 |
| Rated current In |
13.5A |
| Rated voltage |
250V |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| With PE connection |
false |
| With power supply function |
N/A |
| With shield connection |
false |
