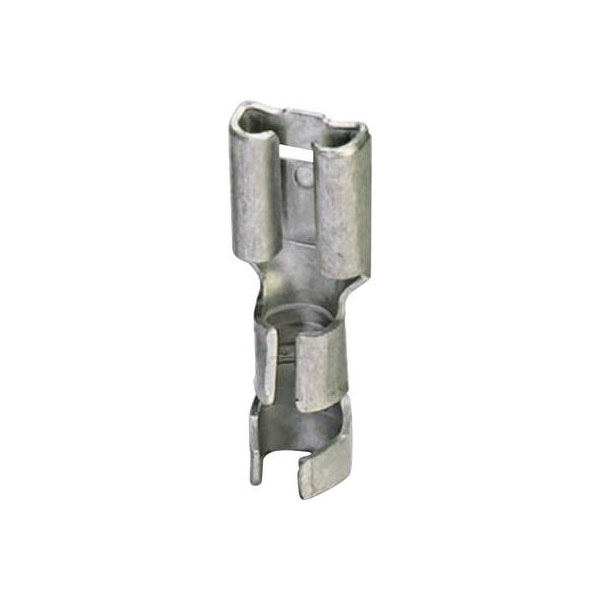

Phoenix Contact 3240159 Blade Receptacle Connector 6.3x0.8mm 100 pieces

The Phoenix Contact 3240159 blade receptacle is an uninsulated metal connector with a width of 6.3 mm and a thickness of 0.8 mm. It is typically used for crimp connections in electrical wiring applications requiring secure and reliable blade terminal receptacles. This product is ideal for use in industrial and commercial electrical installations.

Insulation	Other
Colour	Metal
Colour insulation	N/A
Connection Angle	180°
Connector thickness	0.8mm
Connector Width	6.3mm
Contact Material	Brass tin plated
Cross-section range	1.50 - 2.50mm²
For pull protected connections	true
Insulation Type	Not insulated
Material	N/A
Max. AWG-size	N/A
max. cross section	2.50mm²
Min. AWG-size	N/A
Min. cross section	1.50mm²
Misc Attribute	C-SCF 2,5/6,3X0,8
Model	N/A
Nominal cross section	1.5 - 2.5mm²
Nominal Current	N/AA
Number of branches	1
Oil stop/centre bar	false
Size	6.3 x 0.8 mm
Sleeve form	Short
Suitable for fine strand conductors	true
Suitable for flat conductors	false
Suitable for high temperatures (to 650 °C)	false
Suitable for insulated varnish	false
Suitable for round conductors	false
Suitable for solid conductors	false
Suitable for stranded conductors	true
Surface protection	N/A
Type	Blade receptacle
Type of connection	N/A
Voltage level	N/A
