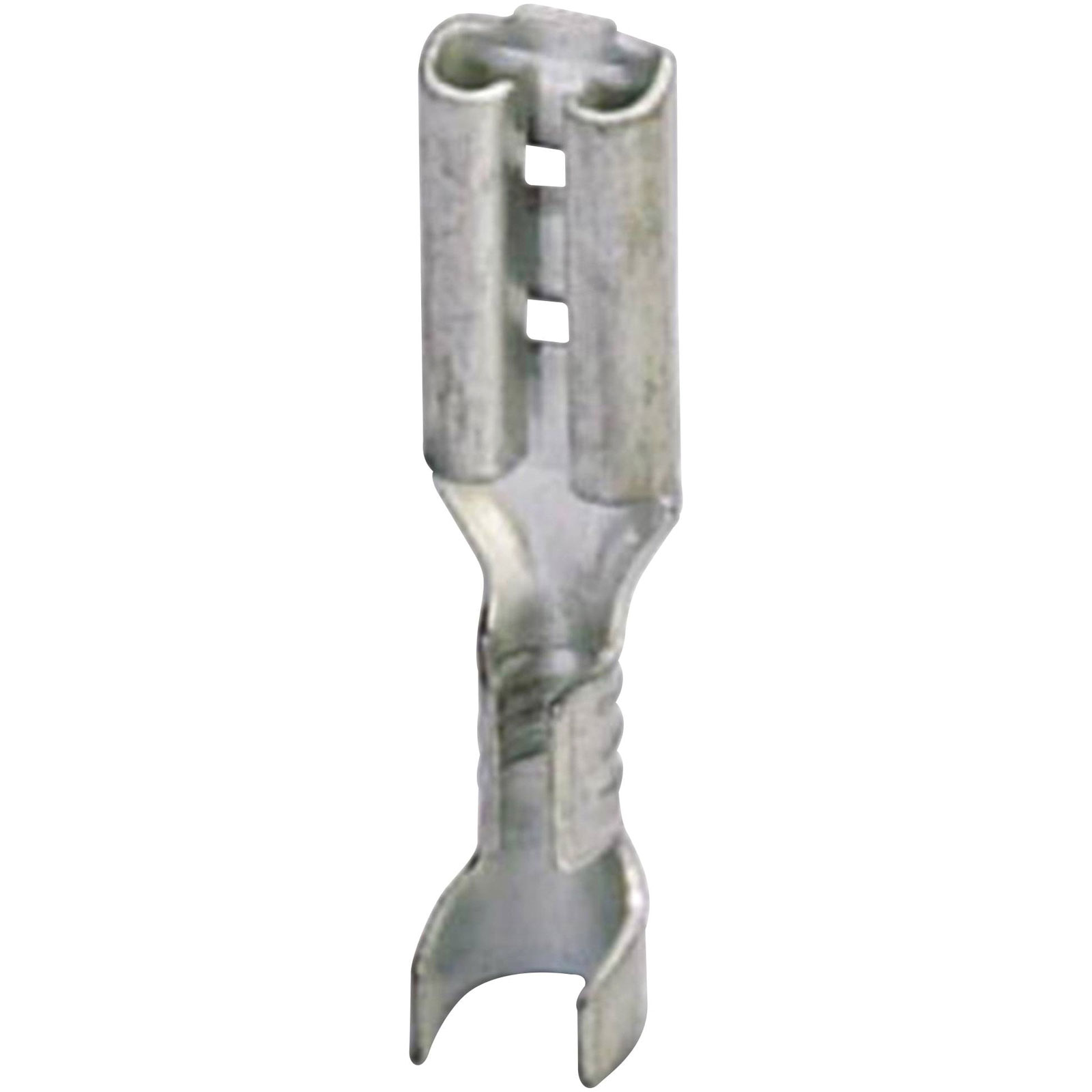

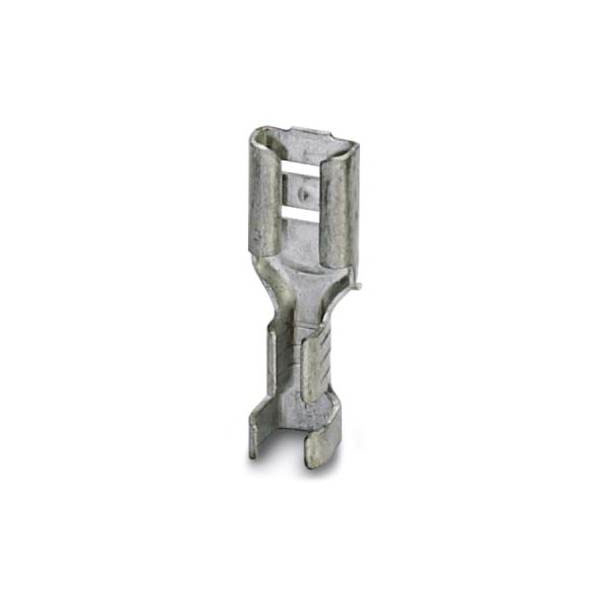

Phoenix Contact 3240157 Blade Receptacle 4.8x0.5mm Non-Insulated Metal

Image Representative of Range

Phoenix Contact 3240157 Blade Receptacle 4.8x0.5mm Non-Insulated Metal

Phoenix Contact
Standard range
Order Code:

12-7547

Brand: Phoenix Contact MPN: 3240157 EAN-13: 4046356453745
Qty Unit Price (Ex VAT)
1+ £14.06
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

Phoenix Contact's part 3240157 is a metal, uninsulated blade receptacle with a connector width of 4.8 mm and thickness of 0.5 mm. This crimp connector is ideal for making secure electrical connections in various industrial applications. The 180° orientation of the blade receptacle makes it suitable for straightforward, inline assembly.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Industrial packaging Yes
Insulation type Not insulated
Manufacturer part # 3240157
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute C-SCF 2,5/4,8X0,5
Size 4.8 x 0.5 mm
Type Blade receptacle
