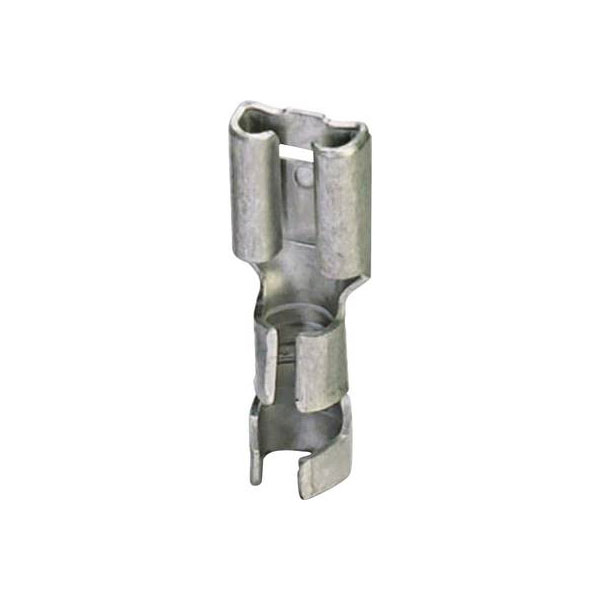

Phoenix Contact 3240156 Blade Receptacle 6.3x0.8mm Uninsulated Metal 100 pieces

Phoenix Contact manufactures the 3240156 blade receptacle, featuring a 6.3 mm connector width, 0.8 mm connector thickness, and a 180° straight configuration. This uninsulated metal crimp connector is ideal for creating secure electrical connections in various industrial applications. It is supplied in packages of 100 pieces, suitable for mass production and maintenance work.

Insulation	Other
Colour	Metal
Colour insulation	N/A
Connection Angle	180°
Connector thickness	0.8mm
Connector Width	6.3mm
Contact Material	Brass tin plated
Cross-section range	0.705 - 1.50mm²
For pull protected connections	true
Insulation Type	Not insulated
Material	N/A
Max. AWG-size	N/A
max. cross section	1.50mm²
Min. AWG-size	N/A
Min. cross section	0.705mm²
Misc Attribute	C-SCF 1,5/6,3X0,8
Model	N/A
Nominal cross section	0.5 - 1.5mm²
Nominal Current	N/AA
Number of branches	1
Oil stop/centre bar	false
Size	6.3 x 0.8 mm
Sleeve form	Short
Suitable for fine strand conductors	true
Suitable for flat conductors	false
Suitable for high temperatures (to 650 °C)	false
Suitable for insulated varnish	false
Suitable for round conductors	false
Suitable for solid conductors	false
Suitable for stranded conductors	true
Surface protection	N/A
Type	Blade receptacle
Type of connection	N/A
Voltage level	N/A
