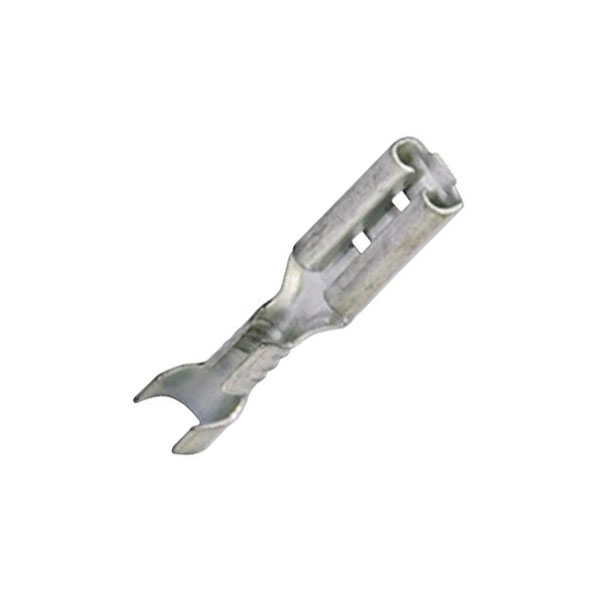

Phoenix Contact 3240152 Blade Receptacle 2.8x0.5mm 180° Uninsulated 100 pieces

Phoenix Contact's 3240152 blade receptacle features a connector width of 2.8 mm and a thickness of 0.5 mm, and it is made of metal without insulation. This 180-degree receptacle is ideal for general electrical applications where secure crimp connections are required. Suitable for use in automotive and industrial electrical systems, it provides reliable and efficient connectivity.

Insulation	Other
Colour	Metal
Colour insulation	N/A
Connection Angle	180°
Connector thickness	0.5mm
Connector Width	2.8mm
Contact Material	Brass tin plated
Cross-section range	0.50 - 1.50mm²
For pull protected connections	true
Insulation Type	Not insulated
Material	N/A
Max. AWG-size	N/A
max. cross section	1.50mm²
Min. AWG-size	N/A
Min. cross section	0.50mm²
Misc Attribute	C-SCF 1/2,8X0,5
Model	N/A
Nominal cross section	0.5 - 1mm²
Nominal Current	N/AA
Number of branches	1
Oil stop/centre bar	false
Size	2.8 x 0.5 mm
Sleeve form	Short
Suitable for fine strand conductors	true
Suitable for flat conductors	false
Suitable for high temperatures (to 650 °C)	false
Suitable for insulated varnish	false
Suitable for round conductors	false
Suitable for solid conductors	false
Suitable for stranded conductors	true
Surface protection	N/A
Type	Blade receptacle
Type of connection	N/A
Voltage level	N/A
