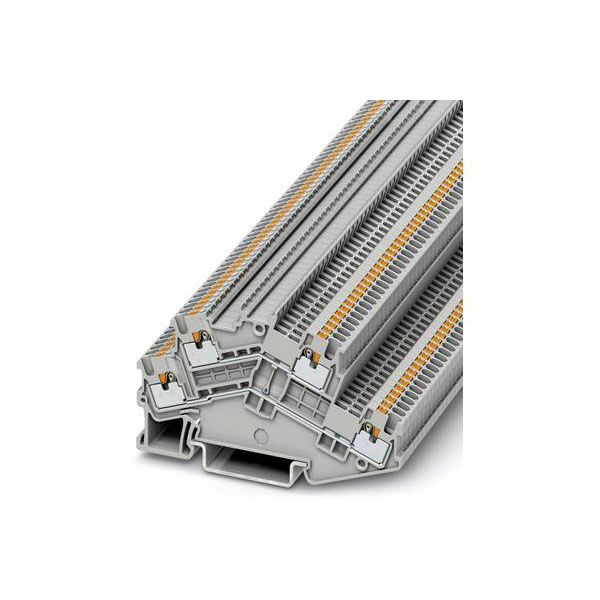

Phoenix Contact 3214657 Double-level Terminal 0.14-1.5 mm² grey push-in

The Phoenix Contact Double-level terminal block PTTBS 1,5/S, part number 3214657, is designed for efficient and reliable electrical connections, providing continuity in switchboard and serial terminal applications. Its dual port design allows for compact installation in control panels, optimising space and enhancing organisation. This terminal block is ideal for use in industrial automation systems and electrical distribution boards.

Type	Dual port terminal
No. of Ways	2
No. of Levels	2
Termination	Push-in Cage clamp
Width	3.5mm
Wire Gauge (mm²)	1.5mm²
AWG (min.)	26
Clamp width	3.5mm
Closing plate required	true
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.14mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 1.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.14 - 1.5mm²
Connection	Quick-connect
Cross section (flexible) (min.)	0.14mm²
Cross section (inflexible) (min.)	0.14mm²
Current Rating	16A
Depth	48.2mm
Dim	(L x W x H) 78.8 x 3.5 x 48.2 mm
Explosion-tested version Ex e	true
Flammability Rating	V0
Height	48.2mm
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Internally connected stages	false
Length	78.8mm
Material insulation body	Thermoplastic
Maximum Wire Size AWG	14
Min. stripping length	8mm
Misc Attribute	PTTBS 1,5/S
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	500V
Number of clamp positions per level	2
Number of levels	2
Number of pins	4
Number of Rows	2
Operating Temperature	- - -°C
Rated current In	16A
Rated voltage	500V
Stripping length (max.)	10mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Wire Gauge (AWG)	14
