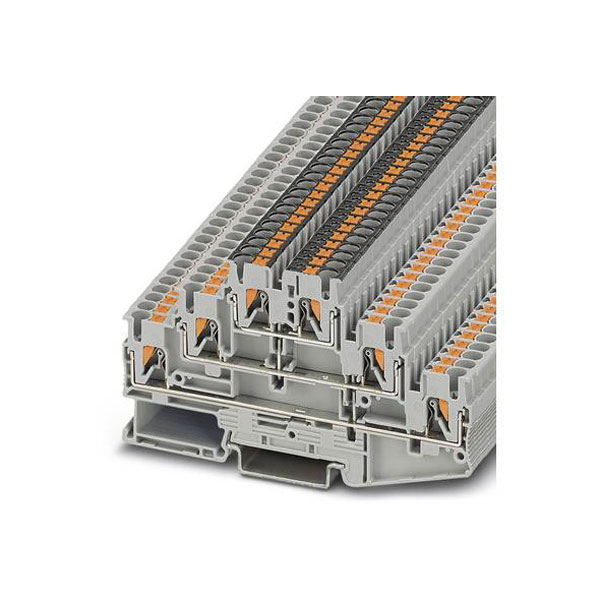

The Phoenix Contact multi-level terminal block PT 2,5-3PV 3210512 is a high-quality switchboard terminal designed for ensuring continuity in electrical circuits. It features multiple ports, allowing for efficient management of serial connections in complex electrical installations. This terminal block is typically used in industrial and commercial applications requiring reliable and organised wiring solutions.
| Type |
Multiport terminal |
| Pitch |
5.2mm |
| No. of Ways |
2 |
| No. of Levels |
3 |
| Termination |
Push-in Cage clamp |
| Width |
5.2mm |
| Wire Gauge (mm²) |
4mm² |
| AWG (min.) |
26 |
| Clamp width |
5.2mm |
| Closing plate required |
true |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 4mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.14 - 4mm² |
| Connection |
Quick-connect |
| Contamination level |
3 |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
20A |
| Depth |
56.5mm |
| Dim |
(L x W x H) 102 x 5.2 x 58 mm |
| Explosion-tested version Ex e |
true |
| Flammability Rating |
V0 |
| Height |
58mm |
| Industrial packaging |
Yes |
| Inflammability class of insulation material according to UL94 |
V0 |
| Insulation |
PA |
| Internally connected stages |
true |
| Length |
102mm |
| Material insulation body |
Thermoplastic |
| Maximum Wire Size AWG |
12 |
| Min. stripping length |
8mm |
| Misc Attribute |
PT 2,5-3PV |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
500V |
| Number of clamp positions per level |
2 |
| Number of levels |
3 |
| Number of pins |
6 |
| Number of Rows |
3 |
| Operating Temperature |
- - -°C |
| Rated current In |
20A |
| Rated voltage |
500V |
| Stripping length (max.) |
10mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Wire Gauge (AWG) |
12 |
