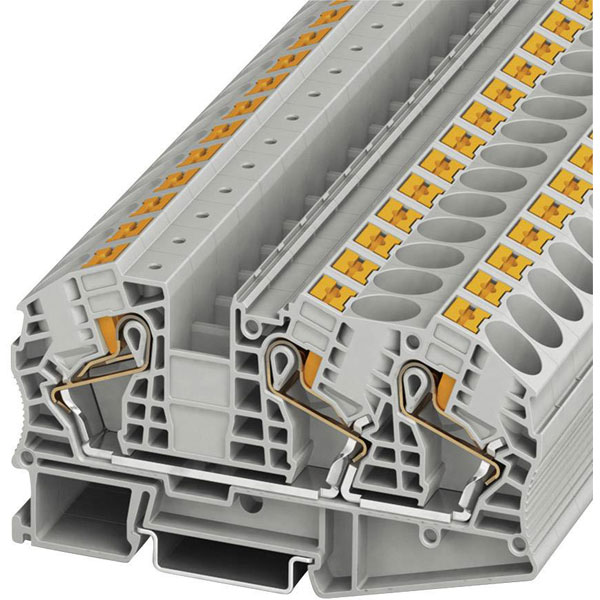

The Phoenix Contact 3208760 is a grey, 12.2 mm quick-connect terminal designed for ensuring continuity in electrical connections. Its compact size and efficient connectivity feature make it ideal for switchboard and serial terminal applications. This component is engineered for reliability and ease of use in various electrical systems.
| Type |
Continuity |
| Pitch |
12.2 mm |
| No. of Ways |
2 |
| No. of Levels |
1 |
| Termination |
Quick-Connect |
| Width |
12.2mm |
| Wire Gauge (mm²) |
25mm² |
| AWG (min.) |
20 |
| Clamp width |
12.2mm |
| Closing plate required |
true |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.5 - 0.5mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5 - 25mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.5 - 25mm² |
| Connection |
Quick-connect |
| Cross section (flexible) (min.) |
0.5mm² |
| Cross section (inflexible) (min.) |
0.5mm² |
| Current Rating |
30A |
| Depth |
52.7mm |
| Dim |
(L x W x H) 100.2 x 12.2 x 53.3 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
53.3mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
100.2mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
6 |
| Misc Attribute |
PT 16-TWIN N |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
1000V |
| Number of clamp positions per level |
3 |
| Number of levels |
1.0 |
| Number of pins |
3 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
76A |
| Rated voltage |
1000V |
| Stripping length (max.) |
18mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Wire Gauge (AWG) |
6 |
