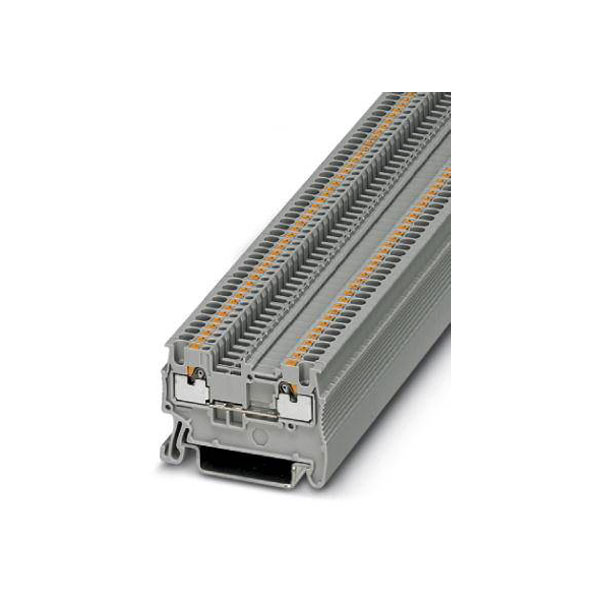

The Phoenix Contact Feed-through Terminal Block PT 1,5/S 3208100 provides reliable connectivity with a 5-pole push-pull mechanism. It features secure mounting with continuity for industrial plug and PROFINET applications. This terminal block is typically used in switchboards and coupling systems for industrial power distribution.
| Type |
Continuity |
| No. of Ways |
5 |
| No. of Levels |
1 |
| Termination |
Push-in Cage clamp |
| Width |
3.5mm |
| Wire Gauge (mm²) |
1.5mm² |
| AWG (min.) |
26 |
| Clamp width |
3.5mm |
| Closing plate required |
true |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 1.5mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.14 - 1.5mm² |
| Connection |
Quick-connect |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
17.5A |
| Depth |
30.5mm |
| Dim |
(L x W x H) 45 x 3.5 x 30.5 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
30.5mm |
| Industrial packaging |
Yes |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
45mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
16 |
| Min. stripping length |
8mm |
| Misc Attribute |
PT 1,5/S |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
500V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
17.5A |
| Rated voltage |
500V |
| Stripping length (max.) |
10mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Wire Gauge (AWG) |
16 |
