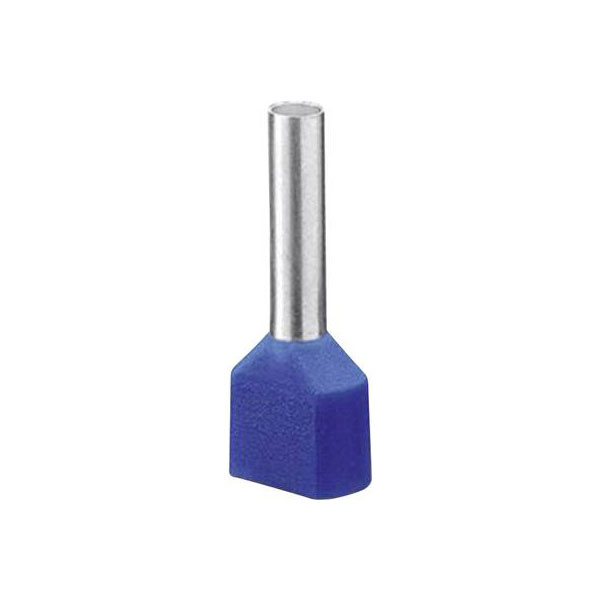

Phoenix Contact 3202847 Twin Ferrule 16mm² Partially Insulated Blue 50pieces

Manufactured by Phoenix Contact, the 3202847 Twin ferrule is partially insulated and blue, designed for 16 mm² cables. Ideal for secure and efficient electrical connections, this ferrule ensures reliable crimping in various applications. It is particularly useful in settings requiring multiple wire terminations, such as control cabinets and electrical installations.

Insulation	Partially insulated
Colour	Blue
Pin Length	31mm
Maximum Wire Size mm2	16mm²
Number of Entries	2
AWG size	6
Construction type	Twin cable end sleeve
Contact Material	Cathode copper, tin plated
Cross-section range	16 mm² x 16 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	2
Misc Attribute	AI-TWIN 2X16 -16 BU
Nominal cross section	16mm²
Reel/roll packaging	false
Sleeve length	16mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Twin ferrule
With identification flag	false
