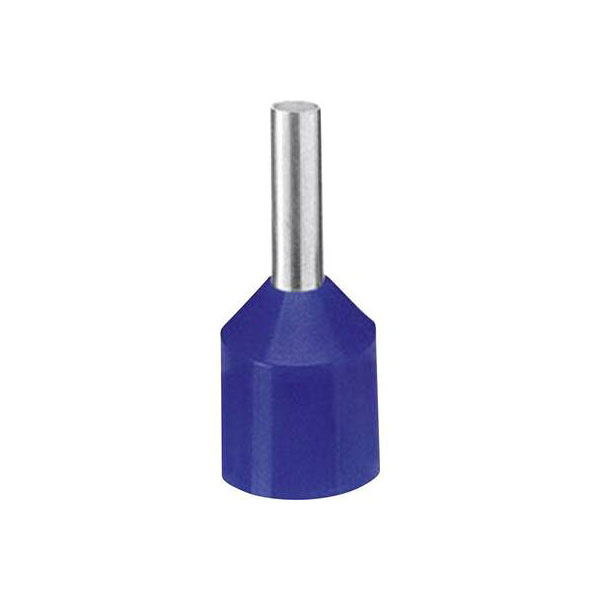

Phoenix Contact 3201929 Ferrule 2.5 mm² Partially Insulated Blue 100 pieces

The Phoenix Contact 3201929 ferrule is a partially insulated, blue crimp ferrule designed for 2.5 mm² wires. It is typically used in electrical connections to ensure reliable and secure wire termination in industrial applications. Packaged in quantities of 100 pieces, this ferrule helps maintain clear and organised wiring systems.

Insulation	Partially insulated
Colour	Blue
Pin Length	17.5mm
Maximum Wire Size mm2	2.5mm²
Number of Entries	1
AWG size	14
Construction type	Standard
Contact Material	Cathode copper, tin plated
Country colour code	DIN
Cross-section range	2.5 mm² x 8 mm
For cables resistant to short circuit	true
Halogen free	true
Industrial packaging	Yes
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	14
Misc Attribute	AI-XL 2,5- 8 BU
Nominal cross section	2.5mm²
Reel/roll packaging	false
Sleeve length	8mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Ferrule
With identification flag	false
