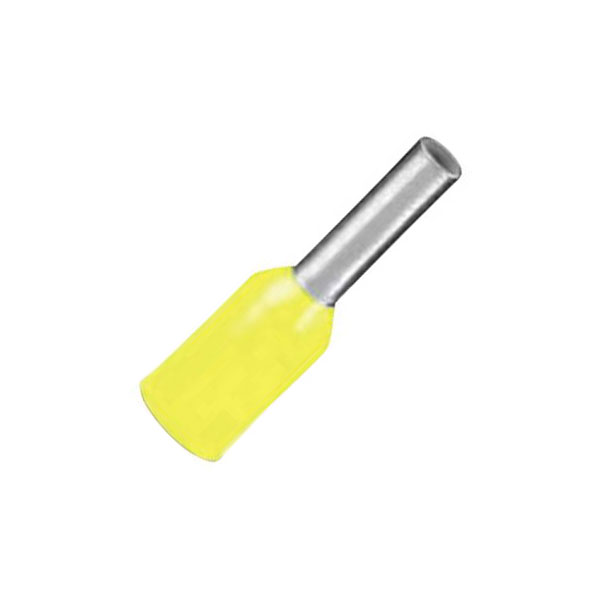

Phoenix Contact 3201848 Ferrule 70mm² Partially Insulated Yellow 25pieces

Phoenix Contact manufactures the 3201848 ferrule, which is 70 mm², partially insulated, and yellow, available in packs of 25. This ferrule is designed to facilitate crimping in electrical applications by ensuring secure and reliable connections. Typical uses include terminating wire ends to improve safety and performance in electrical installations.

Insulation	Partially insulated
Colour	Yellow
Pin Length	37mm
Maximum Wire Size mm2	70mm²
Number of Entries	1
AWG size	Other
Construction type	Standard
Contact Material	Cathode copper, tin plated
Cross-section range	70 mm² x 20 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Misc Attribute	AI 70 -20 YE
Nominal cross section	70mm²
Reel/roll packaging	false
Sleeve length	20mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Ferrule
With identification flag	false
