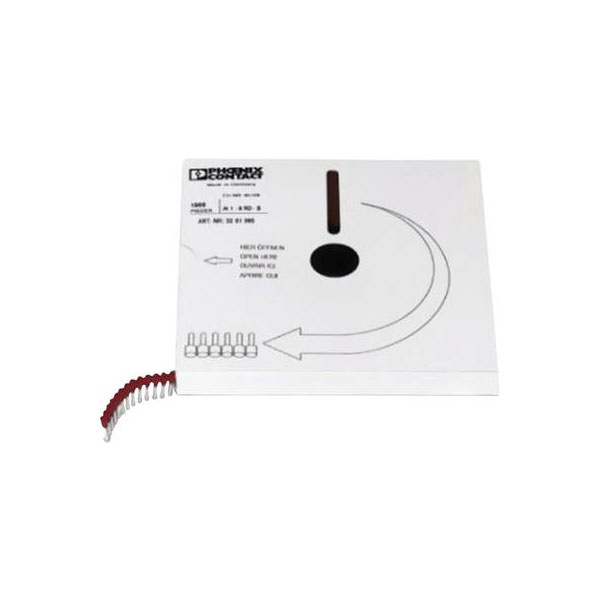

Phoenix Contact 3201576 Ferrule 0.75 mm² Part Insulated White 1000 pieces

Phoenix Contact manufactures the 3201576 ferrule, which is a partially insulated, white ferrule with a cross-section of 0.75 mm². This product is ideal for crimping applications to ensure secure connections in electrical installations. Supplied in a packaging unit of 1000 pieces, it is commonly used in industrial settings.

Insulation	Partially insulated
Colour	White
Pin Length	14mm
Maximum Wire Size mm2	0.75mm²
Number of Entries	1
AWG size	18
Construction type	Standard
Contact Material	Cathode copper, tin plated
Country colour code	DE
Cross-section range	0.75 mm² x 8 mm
For cables resistant to short circuit	false
Halogen free	true
Industrial packaging	Yes
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	20
Misc Attribute	AI 0,75- 8 WH-B
Nominal cross section	0.75mm²
Reel/roll packaging	false
Sleeve length	8mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Ferrule
With identification flag	false
