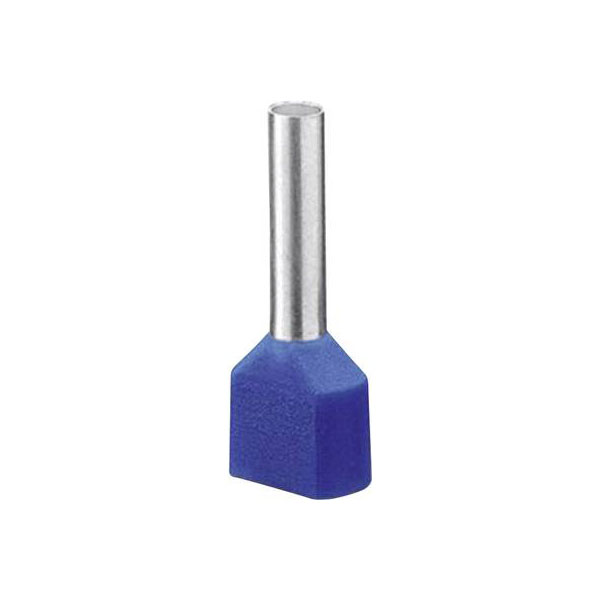

Phoenix Contact 3200878 Twin Ferrule 2.5 mm² Blue 100 pieces Wire-End Sleeve

Phoenix Contact's 3200878 Twin ferrule is a partially insulated blue connector designed for 2.5 mm² cables and comes in a pack of 100 pieces. The ferrule ensures secure crimping for enhanced electrical connection and is ideal for use in terminal block wiring. Commonly used in electrical panels, it aids in simplifying the wiring process while improving reliability.

Insulation	Partially insulated
Colour	Blue
Pin Length	21.5mm
Maximum Wire Size mm2	2.5mm²
Number of Entries	2
AWG size	14
Construction type	Twin cable end sleeve
Contact Material	Cathode copper, tin plated
Cross-section range	2.5 mm² x 13 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	2
Misc Attribute	AI-TWIN 2X 2,5 -13 BU
Nominal cross section	2.5mm²
Reel/roll packaging	false
Sleeve length	13mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Twin ferrule
With identification flag	false
