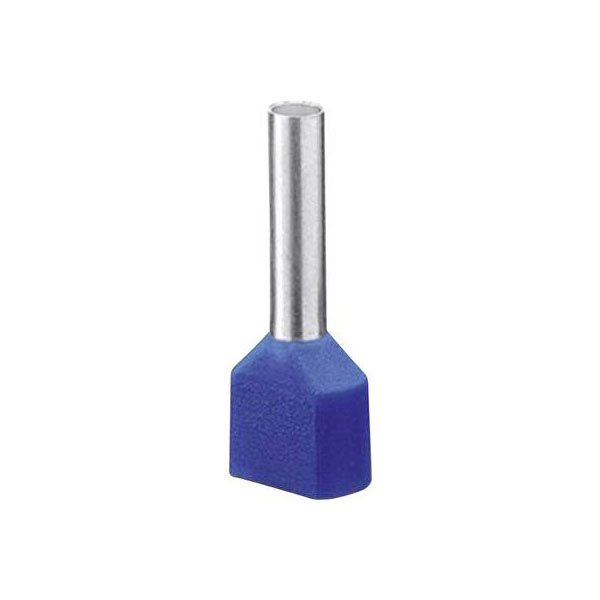

Phoenix Contact 3200836 Twin Ferrule 2.5mm² Insulated Blue 100 pieces

The Phoenix Contact 3200836 Twin ferrule is a partially insulated component designed for 2.5 mm² wire connections, available in blue and sold in packs of 100. This ferrule features a double entry for twin wire applications, enhancing the reliability of electrical connections. It is typically used in wiring tasks where secure, corrosion-resistant connections are essential.

Insulation	Partially insulated
Colour	Blue
Pin Length	10mm
Maximum Wire Size mm2	2.5mm²
Number of Entries	2
AWG size	14
Construction type	Twin cable end sleeve
Contact Material	Cathode copper, tin plated
Cross-section range	2.5 mm² x 10 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	2
Misc Attribute	AI-TWIN 2X 2,5 -10 BU
Nominal cross section	2.5mm²
Reel/roll packaging	false
Sleeve length	10mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Twin ferrule
With identification flag	false
