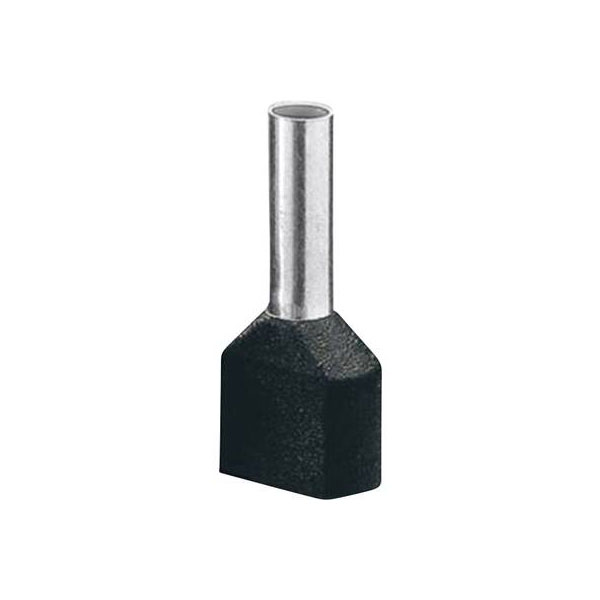

Phoenix Contact 3200823 Twin Ferrule 1.5mm² Insulated Black 100 pieces

The Phoenix Contact 3200823 is a partially insulated twin ferrule designed for 1.5 mm² cables, available in black and sold in packs of 100. It ensures secure electrical connections by allowing the crimping of multiple wires into a single terminal. Typical applications include use in electrical installations and control cabinet wiring where space-saving and reliable connections are required.

Insulation	Partially insulated
Colour	Black
Pin Length	16mm
Maximum Wire Size mm2	1.5mm²
Number of Entries	2
AWG size	16
Construction type	Twin cable end sleeve
Contact Material	Cathode copper, tin plated
Cross-section range	1.5 mm² x 8 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	2
Misc Attribute	AI-TWIN 2X 1,5 - 8 BK
Nominal cross section	1.5mm²
Reel/roll packaging	false
Sleeve length	8mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Twin ferrule
With identification flag	false
