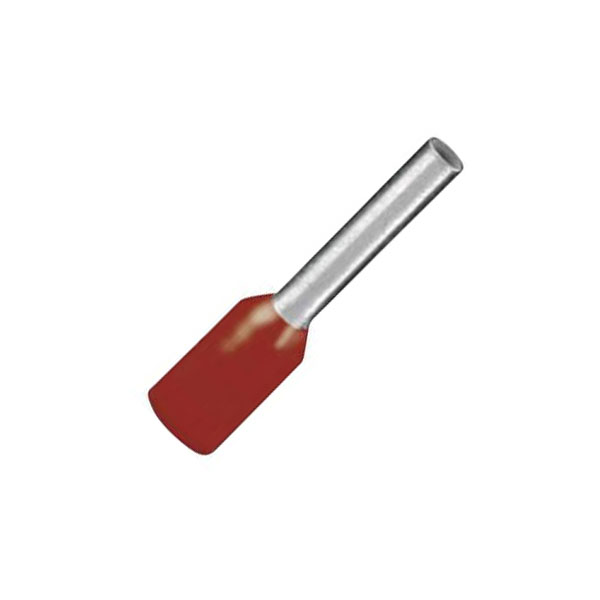

Phoenix Contact 3200616 Ferrule 10mm² Partially Insulated Red 100 pieces

Phoenix Contact offers the 3200616 ferrule, a partially insulated, red component designed for 10 mm² conductors, sold in packs of 100. This ferrule enhances electrical connections and is ideal for crimping applications to ensure safety and reliability. Commonly used in industrial automation and control systems, it improves connection integrity and durability.

Insulation	Partially insulated
Colour	Red
Pin Length	28mm
Maximum Wire Size mm2	10mm²
Number of Entries	1
AWG size	8
Construction type	Standard
Contact Material	Cathode copper, tin plated
Cross-section range	10 mm² x 18 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	8
Misc Attribute	AI 10 -18 RD
Nominal cross section	10mm²
Reel/roll packaging	false
Sleeve length	18mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Ferrule
With identification flag	false
