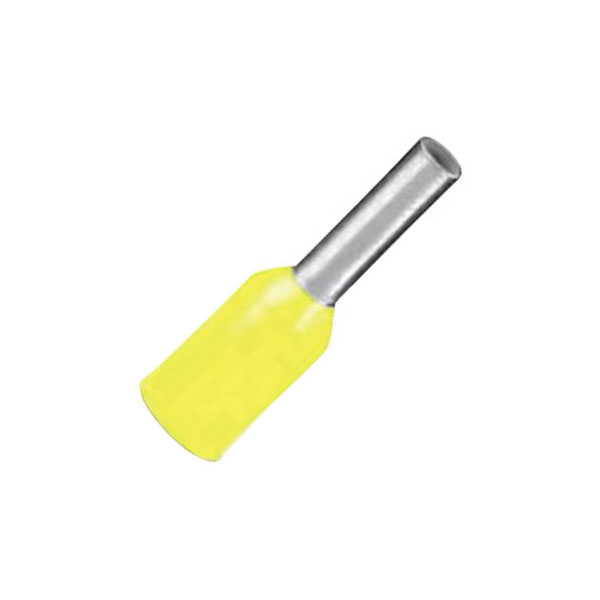

Phoenix Contact 3200577 Ferrule 25mm² 50 pieces Yellow Partially Insulated

Phoenix Contact manufactures the 3200577 Ferrule, a partially insulated yellow ferrule designed for 25 mm² conductors. This product features high-quality insulation and is supplied in packs of 50 pieces. Commonly used in electrical wiring applications, it ensures secure and reliable connections.

Insulation	Partially insulated
Colour	Yellow
Pin Length	30mm
Maximum Wire Size mm2	25mm²
Number of Entries	1
AWG size	4
Construction type	Standard
Contact Material	Cathode copper, tin plated
Cross-section range	25 mm² x 16 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	4
Misc Attribute	AI 25 -16 YE
Nominal cross section	25mm²
Reel/roll packaging	false
Sleeve length	16mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Ferrule
With identification flag	false
