Phoenix Contact 3200548 Wire end Sleeve 6mm² Yellow x100 Partially ins

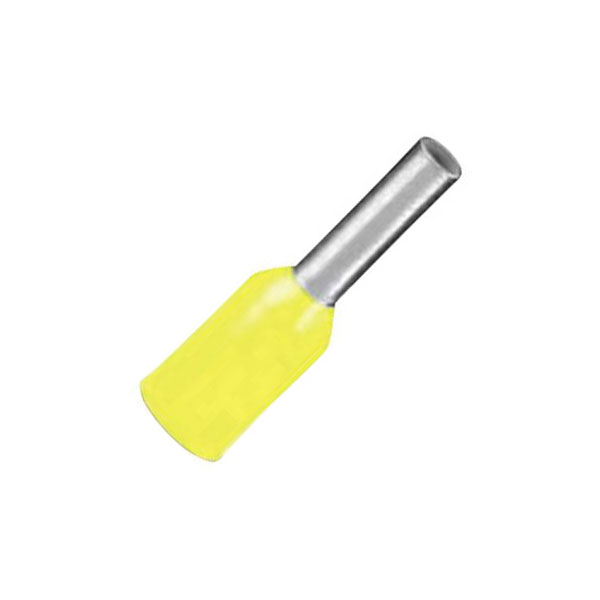

Phoenix Contact's 3200548 ferrule is a partially insulated crimp accessory designed for 6 mm² wiring applications, available in yellow. This ferrule ensures secure and reliable connections in electrical installations. It is commonly used to enhance terminal block connections and prevent frayed wire ends.

Insulation	Partially insulated
Colour	Yellow
Pin Length	20mm
Maximum Wire Size mm2	6mm²
Number of Entries	1
AWG size	10
Construction type	Standard
Contact Material	Cathode copper, tin plated
Cross-section range	6 mm² x 12 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	10
Misc Attribute	AI 6 -12 YE
Nominal cross section	6mm²
Reel/roll packaging	false
Sleeve length	12mm
Surface protection	Other
Temperature Range	105°C
Total Length	N/Amm
Type	Ferrule
With identification flag	false
