Phoenix Contact 3200438 Ferrule 4mm² Orange 100 pieces Wire-end Sleeve 19mm

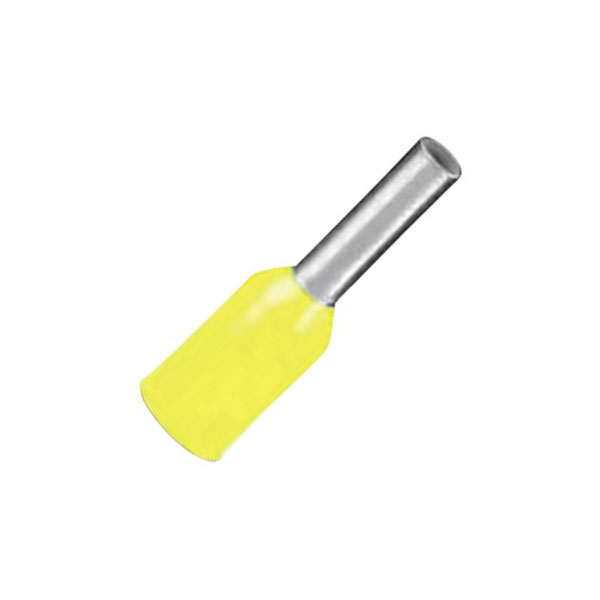

Phoenix Contact's 3200438 ferrule is a partially insulated accessory designed for 4 mm² wire. It is primarily used to provide secure connections in electrical installations, enhancing the durability and reliability of wire terminations. Typical applications include use in control panels and other electrical assemblies.

Insulation	Partially insulated
Colour	Orange
Pin Length	19mm
Maximum Wire Size mm2	4mm²
Number of Entries	1
AWG size	12
Construction type	Standard
Contact Material	Cathode copper, tin plated
Cross-section range	4 mm² x 12 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	12
Misc Attribute	AI 4 -12 OG
Nominal cross section	4mm²
Reel/roll packaging	false
Sleeve length	12mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Ferrule
With identification flag	false
