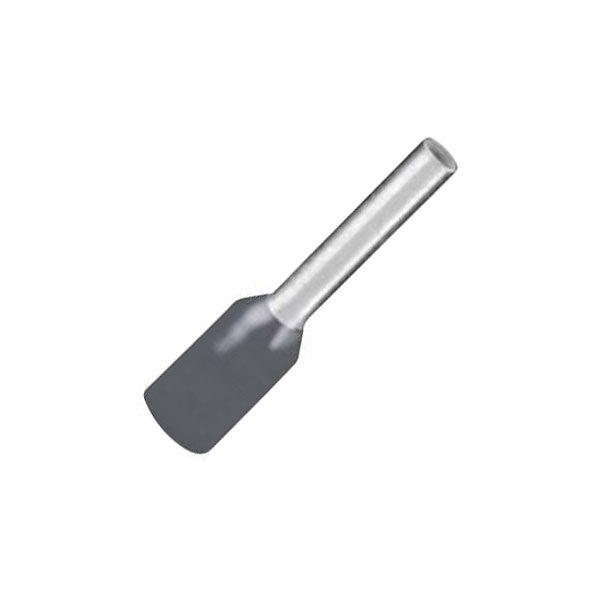

Phoenix Contact 3200069 Ferrule 2.5mm² Grey 100 pieces Partially Insulated

The Phoenix Contact 3200069 is a partially insulated grey ferrule designed for 2.5 mm² wires, provided in packs of 100 pieces. It features a crimp connection, making it ideal for providing a secure electrical contact in industrial and electronic applications. These ferrules are commonly used in wiring systems to ensure reliable and professional-looking connections.

Insulation	Partially insulated
Colour	Grey
Pin Length	14mm
Maximum Wire Size mm2	2.5mm²
Number of Entries	1
AWG size	14
Construction type	Standard
Contact Material	Cathode copper, tin plated
Cross-section range	2.5 mm² x 8 mm
For cables resistant to short circuit	false
Halogen free	true
Insulated	true
Material	Copper
Material insulation	Other
Maximum Wire Size AWG	14
Misc Attribute	AI 2,5 - 8 GY
Nominal cross section	2.5mm²
Reel/roll packaging	false
Sleeve length	8mm
Surface protection	Other
Temperature Range	+105°C
Total Length	N/Amm
Type	Ferrule
With identification flag	false
