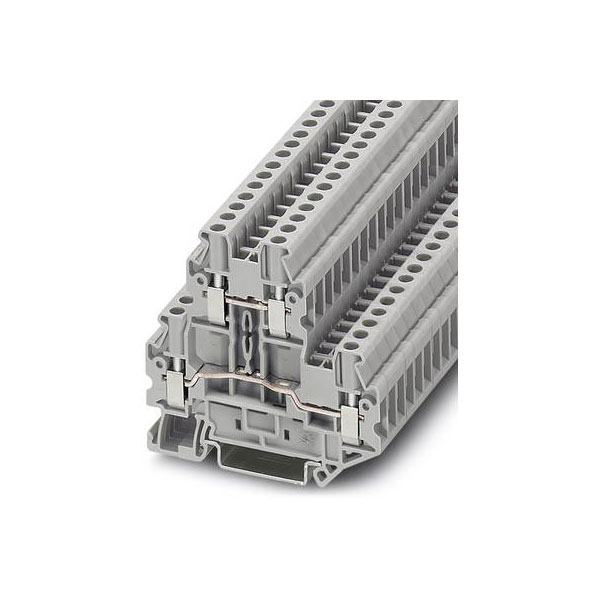

Phoenix Contact 3044636 Double-level Terminal Block 0.14-4mm² Grey

The Phoenix Contact double-level terminal block UTTB 2,5 3044636 is a dual port terminal designed for efficient electrical connections. Featuring continuity and reliable switchboard terminal functions, it is ideal for applications requiring compact and organised wiring solutions. Commonly used in control panels and electrical switchboards, it facilitates easy maintenance and expansion of circuitry.

Type	Dual port terminal
No. of Ways	2
No. of Levels	2
Width	5.2mm
Wire Gauge (mm²)	4mm²
AWG (min.)	26
Clamp width	5.2mm
Closing plate required	true
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.25mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 4mm²
Connectable conductor cross section multi-wired	0.14 - 1.5mm²
Connectable conductor cross section solid-core	0.14 - 4mm²
Connection	Screws
Contamination level	3
Cross section (flexible) (min.)	0.14mm²
Cross section (inflexible) (min.)	0.14mm²
Current Rating	24A
Depth	64.4mm
Dim	(L x W x H) 69.9 x 5.2 x 65 mm
Explosion-tested version Ex e	true
Flammability Rating	V0
Height	65mm
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Internally connected stages	false
Length	69.9mm
Material insulation body	Thermoplastic
Maximum Wire Size AWG	12
Misc Attribute	UTTB 2,5
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	500V
Number of clamp positions per level	2
Number of levels	2
Number of pins	4
Number of Rows	2
Operating Temperature	- - -°C
Rated current In	24A
Rated voltage	500V
Stripping length (max.)	9mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Wire Gauge (AWG)	12
