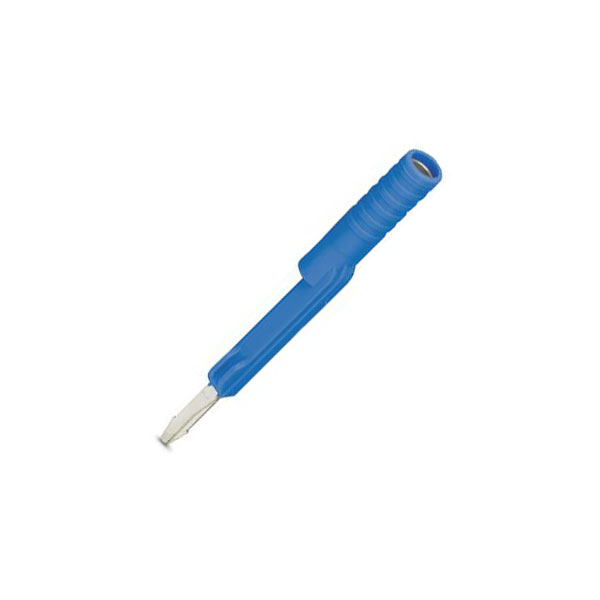

Phoenix Contact 3032729 Test Adapter PAI-4-FIX BU Blue

The test adapter PAI-4-FIX BU 3032729 by Phoenix Contact is designed for seamless integration into wireless systems, including the 2400-MHz system. It acts as a signal converter interface and provides continuity for serial and switchboard terminals. Typically used in INTERFACE Wireless applications, it supports efficient data transmission and connectivity for various wireless accessories.

Colour	Blue
Type	Test adapter
Connectable	false
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	- - -mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	- - -mm²
Connection (type)	Socket
Contact Material	Copper
Content	Packing unit: 10 pc
Current Rating (A)	10
Industrial packaging	Yes
Length (mm)	51.5mm
Material (details)	Polyamide
Misc Attribute	PAI-4-FIX BU
Modular spacing	N/Amm
Nominal Current	10:00:00
Number of Poles	1
Product Type	Test Adapter
Rated voltage	N/AV
Strip length	N/Amm
Temperature Range	-60 to +110°C
Type of electric connection	N/A
Voltage Rating (V, V DC)	250 V
Weight (g, g/m)	2.214g
Width (mm)	5.8
