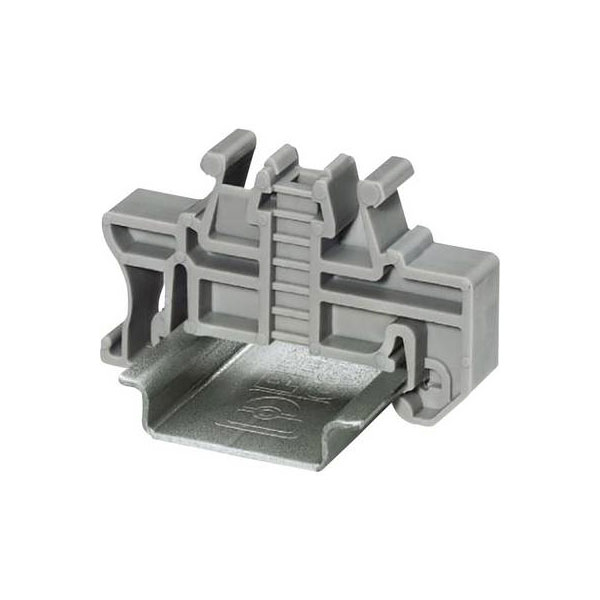

Phoenix Contact 3022218 End Piece Grey Quick Mounting for 35 mm Rails

Phoenix Contact's 3022218 end piece is specifically designed for use with serial and switchboard terminals, ensuring reliable continuity in electrical systems. The CLIPFIX 35 feature allows for secure and easy mounting. It is ideal for applications in electrical panels where precise terminal end capping is required.

Colour	Grey
Type	End piece
Depth	35.5mm
Dim	(LxWxH) 55.6 x 9.5 x 35.5 mm
Height	55.6mm
Inflammability class of insulation material according to UL94	V2
Length (mm)	55.6mm
Material	Other
Material quality	Polyamide (PA)
Misc Attribute	CLIPFIX 35
Mounting method	DIN rail (top hat rail) 35 mm
Product Type	End Cover
Temperature Range	-60 to +105°C
Type of latching	Screwless
Width	N/Amm
Width (mm)	9.5
