Phoenix Contact 2902040 MINI MCR-2 Amplifier 3-Way Isolation DIP Switch

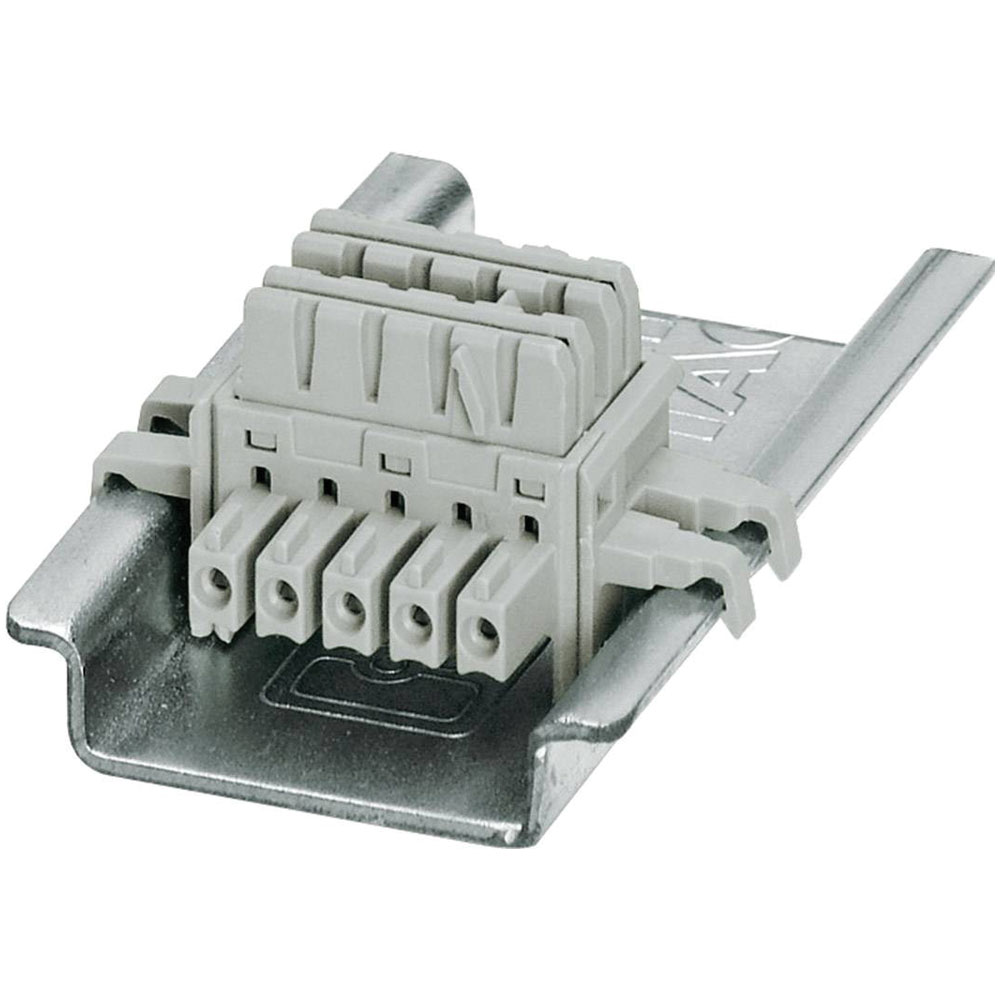

Image Representative of Range

Phoenix Contact 2902040 MINI MCR-2 Amplifier 3-Way Isolation DIP Switch

Phoenix Contact
Standard range
Order Code:

12-7163

Brand: Phoenix Contact MPN: 2902040 EAN-13: 4046356652063
Qty Unit Price (Ex VAT)
1+ £185.32
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Phoenix Contact MINI MCR-2-UI-UI-PT 2902040 is a versatile analogue converter used in control systems and automation. It functions as a signal transducer, isolator, and transformer to convert and isolate signals for reliable processing. Typical applications include temperature transduction and frequency conversion in industrial automation settings.
Connection Push-In
Current consumption 25 mA (power output with 24 V/DC incl. load) · 54 mA (power output with 24 V/DC incl. load)
Dim (L x W) 120.5 mm x 6.2 mm
Input current (max.) 24mA
Input resistance Voltage input:> 1000kΩ
Power input: 63kΩ
Input signal 0V - 5 V
1 V - 5 V
-5 V~5 V
0V - 10 V
2 V - 10 V
-10 V - 10 V
0V - 20 V
4 V - 20 V
-20 V - 20 V
0V - 24 V
4.8 V - 24 V
24 V - 24 V
0V - 30 V
6 V - 30 V
-30 V - 30 V
0 - 20
4 - 20
-20 mA - 20mA
IP rating IP20
Length 120.5mm
Load ≥10 kΩ /< 600 Ω (with 20 mA)
Max. ambient temperature +85°C
Min. ambient temperature -40°C
Misc Attribute MINI MCR-2-UI-UI-PT
Output signal 0V - 5 V
1 V - 5 V
-5 V~5 V
0V - 10 V
2 V - 10 V
-10 V - 10 V
0 - 20
4 mA - 20mA
Setting DIP Switches
Supply Voltage 9,6 - 30V DC
Width 6.2mm
