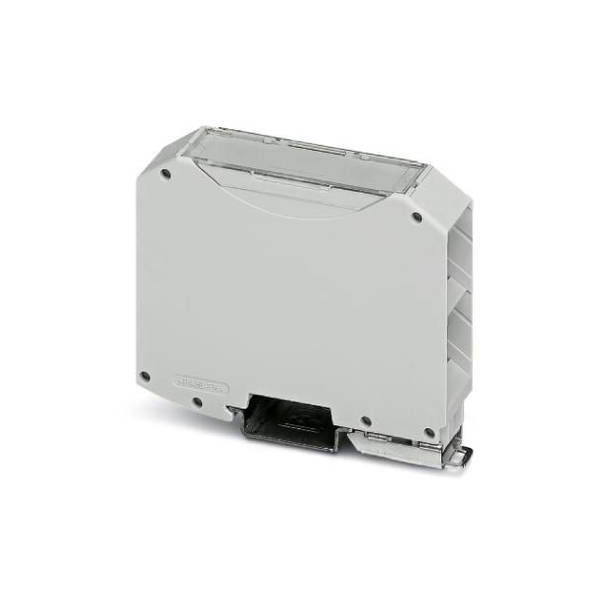

Phoenix Contact 2869362 ME MAX DIN rail casing Polyamide Light grey

The Phoenix Contact ME MAX 22,5 SF G 2-2 KMGY is a DIN rail casing measuring 85 x 22.5 x 70.4 mm, made from light grey polyamide. This durable casing is ideal for housing electronic components and providing compact organisation in control panels. It is commonly used in industrial and automation applications.

Type	DIN rail casing
Enclosure Height	70.4mm
Enclosure Length	85mm
Enclosure Width	22.5mm
Colour	Light grey
Protection Rating	None
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	69.55mm
Dim	(L x W x H) 85 x 22.5 x 70.4 mm
Height	85mm
Housing connectable	N/A
Material	Polyamide
Misc Attribute	ME MAX 22,5 SF G 2-2 KMGY
Operating Temperature	-40 - 105°C
Pins	16
RAL-number	N/A
Suitable for rail mounting	true
Surface finishing	N/A
Type of enclosure	N/A
Wall mounting possible	false
Width	22.6mm
Width in number of modular spacings	N/A
With integrated PCB-mounting connection system	false
With screening	N/A
With ventilation slots	false
